Fluke 1550B megohmmeter with leads, case, manuals
* Fluke 1550B Insulation Tester (Megger, Megohmmeter)
* Used about 5 times for a large project we had, so it's almost new!

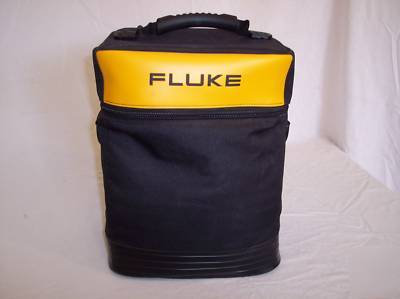

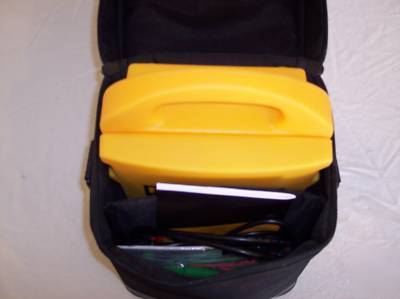

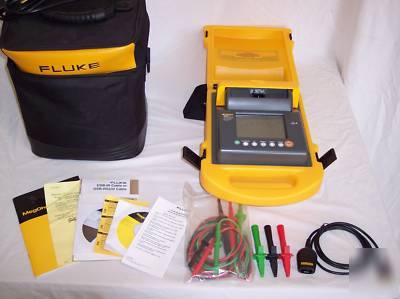

* Includes Meter, Case, Leads, Software, Interface Cable, Manual - Everything shown
* Test voltages of 250V, 500 V, 1000 V, 2500 V, and 5000 V
* Capable of testing in 50V increments between 250V and 1000V and 100V increments between 1000V and 5000V
* Warning voltage function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC
* Guard system eliminates the effect of surface leakage current on high-resistance measurements

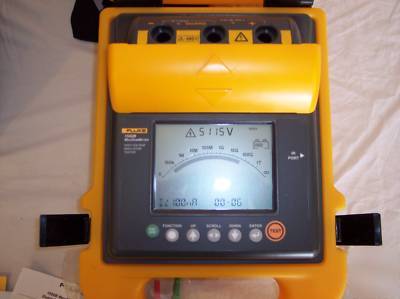

* Large digital/analog LCD shows detailed measurement data
* Cable or insulation capacitance
* Ramp function (0-5000 V DC) for breakdown testing
* Polarization index and dielectric absorption calculated automatically
* 99 memory locations store all measurements parameters
* Includes FlukeView Forms Basic Software and Optical Interface cable for easy download to a Windows (R) PC
All inputs are protected to IEN61010-1 CAT III, 600 V and the 1550B is compliant to EN 61557 parts 1 and 2.
0% to 10% at 1 mA load current
Induced AC mains current rejection
Charging rate for capacitive load
30 V to 600 V (AC/DC, 50/60 Hz)
0% to 100% of selected test voltage, or until breakdown
-20 C to +50 C (-4 F to 122 F)
-20 C to +65 C (-4 F to 149 F)
80% at 31 C (87.8 F), 50% at 50 C (122 F)
EN 61010-1, CAT III 600V, EN61557, Parts 1 & 2
170mm x 242mm x 330 mm (6.7" x 9.5" x 13.0")
85 to 250 V AC, 50/60 Hz, 50 VA
