B&g plastics 4-mold blow molding machine
#1447 B&G PLASTICS 4-MOLD BLOW MOLDING MACHINE
Heater Length:..............................38 (965mm)
Number of Heating Stations:............................14
Equillbrations Length-Max:.........................................26 (660mm)
-Min:.......................................16 (406mm)
Center Distance Between Preforms:........................75 (70mm)
Center Distance Between Lanes:..................................6 (152mm)
Number of Heater Elements Per Bank:....................20
Total Number Temp. Controlled Zones
- Per Bank:..........................20
Total Heater Capacity:..................................................51.2 KW
Oven Loading Height From Floor
With Levelers in Place:.................63
Total Number of Pallets:...........................64
Total Number of Nose Holders:.............................256
Platen and Clamp Specifications
40 Tons for Tonnage Clamp:.....................66 Tons (64 Tons Metric)
Platen Size:..........................24 x 16.38
Maximum Daylight:............................13.50 (343mm)
Clamp Stroke (3 x 2 ):.............................6 (152mm)
Bottom Stroke:..........................3.06 (77.7mm)
Overall Mold Dimensions-Each Half:...........................6 W x 13.875 H x 3.75 D
Total Mold Thickness:..............................7.5 (190mm)
Mold Bottom Diameter (Max.3 PC Molds):..................4.247 (106mm)
Neck Finish Max:.......................43mm
Neck Finish Min:........................18mm
Maximum Support Ring Diameter:........................2 (50.8mm)
Body Diameter Max.:......................1.50 (38mm)
Body Diameter Min.:.......................0.62 (16mm)
Maximum Overall Length:..............................8 (203mm)
Maximum Thickness:...........................0.190 (4.8mm)
Stretch Blown Container Specifications:
Neck Finish Max.:......................43mm
Neck Finish Min.:........................18mm
Maximum Diameter:...........................5.75 (140mm)
Maximum Height (w/o Finish):..........................15 (390mm)
Maximum Approximate Volume:......................... gal.
Overall Dimensions:.......................138 L x 121 W x 96 H
Overall Weight:..........................24,000 lbs
30 HP AC Drive Motor and Controls
Quick Panel Programmable Touch Screen Control

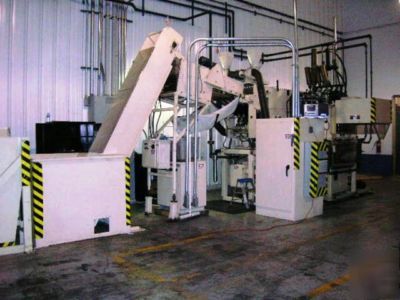

Bulk Bottle Feeder with Incline Conveyor, Hydraulic Power Package and Touch Screen Controls.
Neckfinishes from 18mm to 43mm. Speeds of up to 6,000 containers per hour. Producing different sized simultaneously. Automatic, perform 4-Pocket Blow Molder capable of doing up to 4400 BHP depending on application. Bottleneck size range of: 18mm to 48mm and capable of molding bottle sizes of liter pet with proper change parts.
Machine Condition:.................... Very Good
Machine Location:...................... Franklin Park, IL
