Xhhw-2 500 ft. #14 awg stranded wire - white

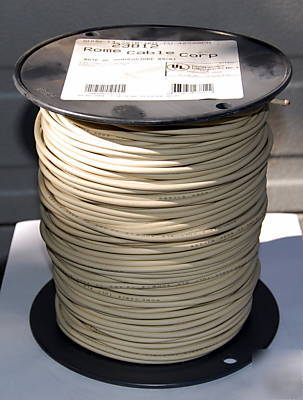

500 feet of #14 AWG XHHW-2 XLP stranded single conductor (7 strands) cable with white 30 mil Cross-Linked Polyethylene (XLP) insulation, a nominal diameter of .14" manufactured by Rome Cable Corporation, rated for 600 volts and a NEC Ampacity of 25.
This wire is general purpose wire for lighting and power - residential, commercial, and industrial buildings in accordance with the National Electrical Code. It is rated for use for a maximum conductor temperature of 90 degrees C in dry or wet locations, 600 volts for installation in conduit or other recognized raceways.
1. Listed by UL as Type XHHW-2 per Standard 44 for Rubber-Insulated Wires and Cables.
2. Conforms to ICEA S-95-658/NEMA WC70, utilizing Column B thicknesses.
3. Conforms to Federal Specification J-C-30B.
Construction: Annealed copper conductor, Rome-XLP thermosetting chemically crosslinked polyethylene insulation, surface printed.
Approx. Net Weight 19 lb./1000 Ft.
X stands for XLP or cross-linked polyethylene insulation; for dry/ damp/ wet locations
HH stands for High Heat or higher loaded current temperatures, up to 90 C
W stands for use in wet locations
The thermoset XHHW product has better low temperature properties. This is better for underground applications and harsher environments and the short circuit current carrying capacity is also greater, providing greater protection from meltdown than THHN.
