Wheelabrator, pangborn, goff,type shotblast, shot blast

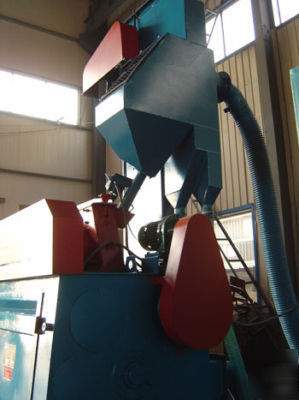

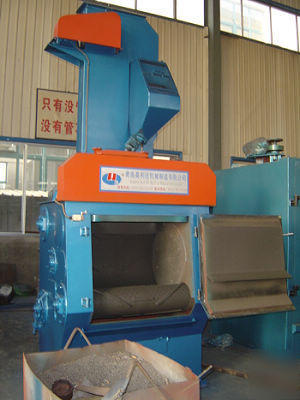

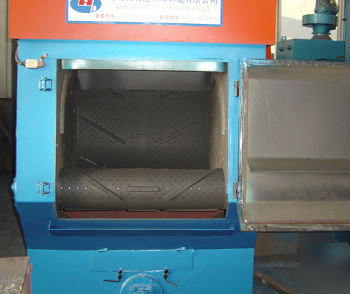

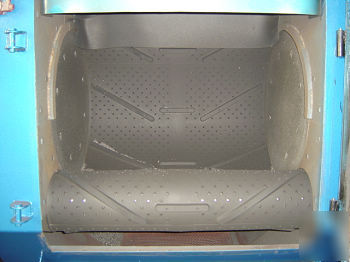

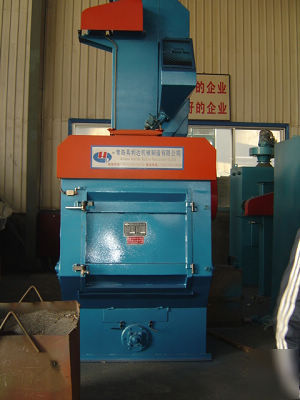

New Automatic Rubber Belt Tumbleblast Shot Blast MachineModel: Q326EAThis machine adopts the endless rubber belt to form a barrel, which makes the work pieces tumble continuously during the shot blasting process.
* Machine size/effective volume: 5 cubic feet
* Diameter of end barrel disk: 25"
* Maximum recommended weight of single work-piece: 22 lbs
* Footprint: 6' wide x 6' deep x 13' tall

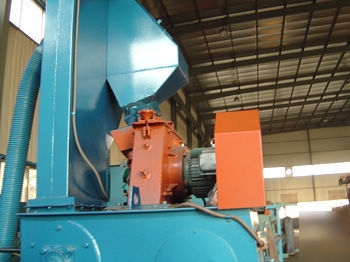

* Blastwheel: 1 - 10HP (7.5Kw) blastwheel with a diameter of 16.535" (420mm). This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, and made of 15-18% high chrome for long life, it is direct drive with a double disk design (each disk is over 3/4" thick), and straight blades

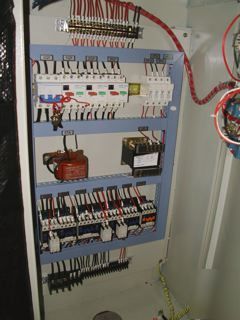

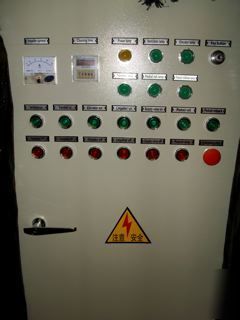

* Electric Control System: operator control panel with an operating voltage of 460V, 3 phase, 60 Hz
* Power consumption: 16.9 HP (12.6 Kw) approximately 26A
* Dust collector sold separately if needed
