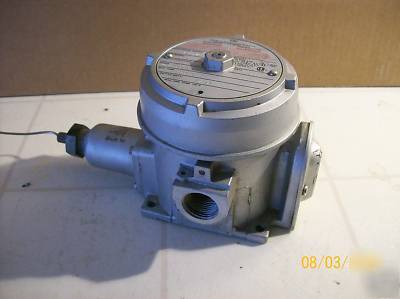

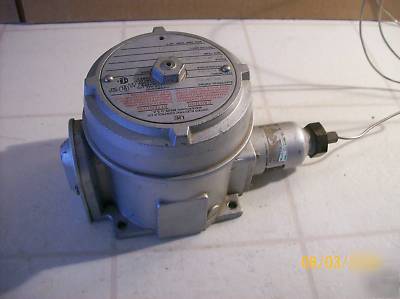

United electric control temperature switch E121-3BS
UNITED ELECTRIC CONTROL TEMPERATURE SWITCH E121-3BS
E121-3BS : Temperature Switch 100/400F Remote Mount 6ft Ss Bulb & Capillary Explosion Proof Temperature Switch
UE 120 Series Temperature Switch for Divisions 1 and 2 Use
Adjustable Setpoint Range: 100 to 400 F, Max. Temp: 450 F, Scale Div.: 5
One SPDT Switch Output, Bulb and Capillary, Reference Dial, External Adjustment, NEMA 4X Epoxy-Coated Enclosure

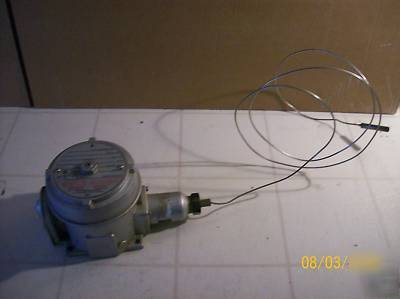

Bulb (OD x Length): 3/8" x 2-1/8"
* Class I, Division 1 & 2 (Zone 1); Class II, Div. 1 and 2; Class III
* Worldwide approvals and certifications

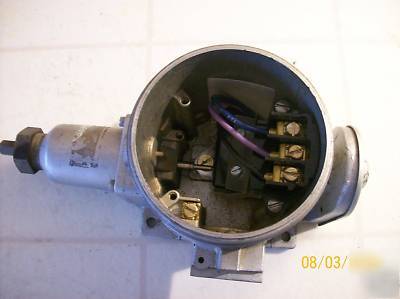

* Enclosure design permits safe and easy access for wiring
* External adjustment via reference dial
* Die cast aluminum enclosure, epoxy powder coated and gasketed
