Tbt ML200-1-800 sungle spindle gun drilling machine

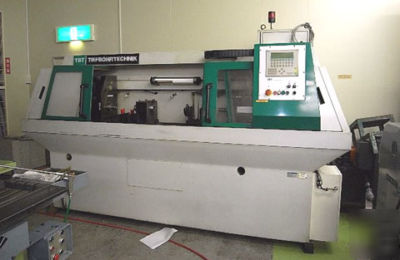

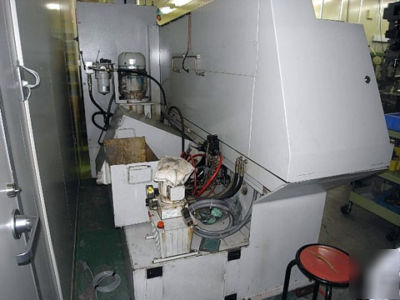

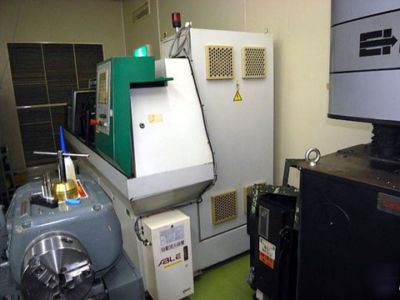

Liberty Machinery Company-You are looking at(1) USED - 1/2 X 31" STROKE TBT TIEFBOHRTECHNIK TYPE ML-200-0800 SINGLE SPINDLE GUN DRILLING MACHINE* Serial No. 11.05616.022Condition - USEDNew - 1999LMC #25021 SPECIFICATIONS:Number of Spindles 1

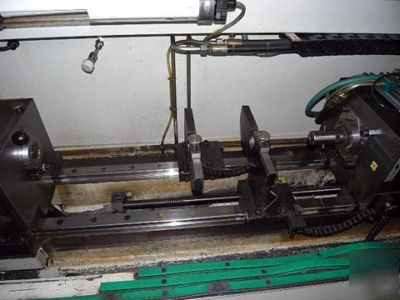

Drilling Slide Stroke 800 mm / 31.76"
Drilling Capacity - Maximum 12 mm / .472"

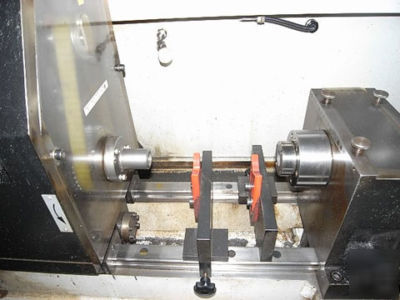

Drilling Depth with Steady Rest & Sealing Casing 500 mm / 19.6"
Spindle Drive Capacity 1,2 / 3.2 kW 1.6 / 4.3 HP
Spindle Speed Range (Frequency Controlled) 1000 - 2400 RPM
Feed (Infinitely Variable Frequency Controlled) 0-15,000 mm/Min / 23,700 IPM
Rapid Traverse 0-15,000 mm/Min / 23,700 IPM
Clamping Tailstock Motor .75 kW / 1.0 HP
Clamping Tailstock Spindle Speed 500
Clamping Tailstock Slide Stroke - Maximum 60 mm / 2.36"
High Pressure Coolant (Radial Piston Pump) 38L/Min / 6.3 Gal/Second
High Pressure Pumping Set 5.5 kW / 7.5 HP @ 1500 RPM
Coolant Tank Capacity 500L / 132 Gallons
Approximate Overall Dimensions 127"L x 62"W x 74"H
Approximate Weight 3200 kg / 7,050 Lbs.

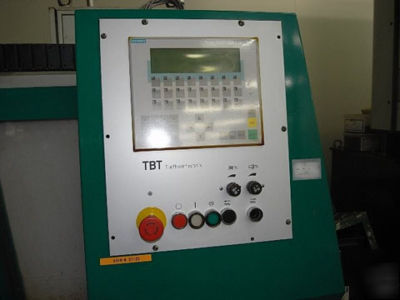

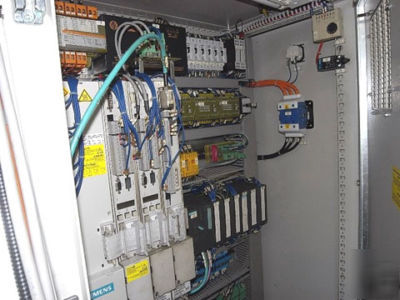

EQUIPPED WITH:Siemens PLC Control
Counter Rotational Workpiece Option

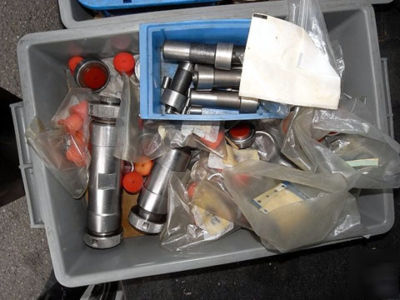

Books, Manuals, Drawings and Documentation
