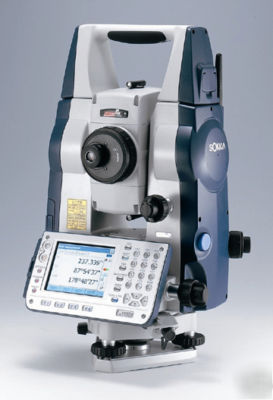

Sokkia SET1X 1" total station w/bt.on-board sdr,wids.ce
NEW SOKKIA SETX SERIES REFLECTORLESS TOTAL STATIONS
The new Sokkia SETX series of total stations is a soon to be classic addition to the Sokkia product line. It essentially replaces the older 130R and 030R models, and adds many new innovations and features not available either of those series. The built in SDR software provides for operations that in the past have required a external data collector or other post processing, including COGO, roading, surface area calculation, and much more. The multiple data interfaces provide tremendous flexibility. Unit comes with 2 BDC56 batteries providing for 12 hours of continuous operation each with a full charge
Supplied with: (2) BDC58 Li-Ion Batteries , (1) CDC68 Rapid Charger (charges 2 batteries at a time), CP9 Tubular Compass, Telescope Sunshade, Lens Cap, Plumb Bob, Vinyl Rain Cover, Mini Tool Kit, Operator's Manual, Hard Carrying Case.
The Retail Price is : $13,895.00.
The new Sokkia Classic SET X Total Station is a rugged, high-performance total station incorporating the latest technology with traditional surveying functionality.
An environmental protection rating of IP65 makes SET X the highest in class for Windows CE total stations, allowing it to withstand the harshest conditions on the most demanding jobsites. SET1X includes absolute encoders enhanced with Sokkia's groundbreaking Independent Angle Calibration System (IACS) to provide extremely reliable angle measurement with unprecedented stability.
* Superior distance accuracy in any situation with RED-tech EX
* Measure in reflectorless mode from 1-foot to 1640 feet!
* Enhanced absolute decoders make superior high accuracy angle measurement possible
* IP65 rating means the SETX can withstand the harshest environmental conditions
* Class 1 Bluetooth technology for license-fee long range data communication
* Large color LCD touch screen display provides maximum visibility, even in direct sunlight
* Full alpha-numeric illuminated keypad
* Multiple data interfaces include USB port (2 types), CF card slot, and standard RS232 port
* Windows CE-based SDR data collection program on-board!
To learn more about SET1X please visit
Please contact us if you want to pay wire transfer or bank's check.
Expandable Windows CE installed SET X has an easy-to-see color LCD touch screen display and its operability puts it in a class of its own.
On-board SDR program is Windows CE-based data collection software that increases functionality by providing powerful surveying programs with an easy-to-follow workflow, customizable settings and a graphic interface.
Highest in its Class for Environmental Protection
SET X offers the highest in environmental protection for Windows CE total stations*. SET X has an IP65 rating, meaning it is able to withstand the harshest conditions in the most demanding jobsites. SET X maintains its IP65 rating even with the external battery connected.
RED-tech EX High Precision Reflectorless Measurement Using Revolutionary Digital Signal Processing Technology
RED-tech EX EDM is acclaimed for pinpoint accuracy using an ultra-narrow red laser beam and for the flexibility to measure from the industry's shortest distance of 30cm (1ft.) up to 500m (1,640ft.). RED-tech EX performs accurate reflectorless measurement of building corners, telephone/electrical wires, manholes, and even through fences.
Measuring beam spot size (Reflectorless mode)
RED-tech EX uses only one laser beam for distance measurement and pointing, meaning it exactly measures the red laser point. The laser beam diameter and output level are automatically optimized according to the target type providing stability that you have never experienced before.
Measure distances up to 6,000m (19,680ft.) using a single AP prism and 500m (1,640ft.) using reflective sheet targets.
Advanced Angle Measurement System
SET X features SOKKIA's original absolute encoders that provide long-term reliability in any work-site conditions. SET1X and SET2X feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurement.
SET X features an ergonomically placed trigger key that greatly facilitates taking measurement while looking through the telescope and even while turning the fine motion screws. Measurement can be taken at any time with just the push of a button.
Bluetooth Wireless Technology
SET X has 1MB of internal memory, CF card slot and USB ports. A 1GB SD card can also be used with an adapter.
SOKKIA's original SFX technology provides convenient data transfer anywhere in the world using an internet-capable mobile phone.
An easy-to-see guide light assists in setting out measurements. Green and red LED's visually guide the prism-side operator
