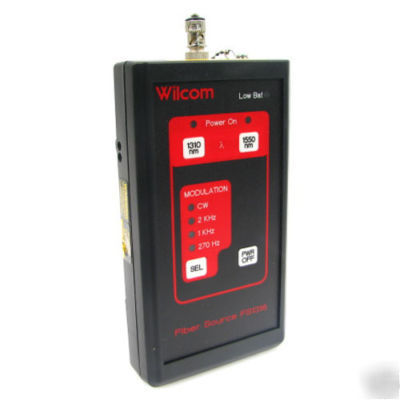

Wilcom optical 1310/1550NM dual wavelength laser source
Wilcom Optical 1310/1550nm Dual Wavelength Laser Source New
Model/Part No:FS-1316 Our Item ID: 5501
Wilcom Optical Laser Source Single Port Dual Wavelength 1310nm/1550nm.
The FS Series Laser Sources are hand-held battery powered stabilized dual laser sources. Together with any of Wilcom's power meters, this team makes the perfect combination for accurately testing multimode or singlemode cable installations including long-haul fiber networks, cable attenuation, point-to-point connection verification, end-to-end testing, and system installation verification.
The FS-1316 Dual 1310/1550 Laser Source operates at 1310 and 1550nm. The highly efficient, stabilized outputs use rear facet diode technology to compensate for short- and long-term drift.
The FS Laser Sources feature both continuous wave (CW) and modulated output modes. In CW mode the units feature extremely stable output power at -8 dBm for standard optical loss measurements. In the modulated mode, each unit provides 2kHz, 1kHz or 270Hz for fiber identification when used with optical fiber identifier Models F6121A, F6222 or F6222C.
Each laser source will operate for more than 25 hours on just two AA batteries. All units include a "Low batt" indicator to monitor the state of its AA batteries.
Item Tested?: Not Applicable (N/A)Physical Condition: Excellent; Working Condition: Fully Functional3 | 10x 8x5 | 1
