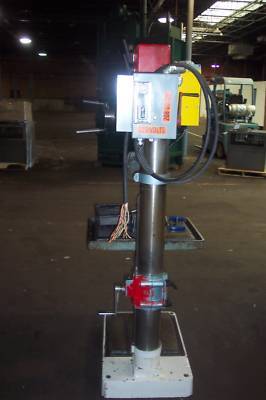

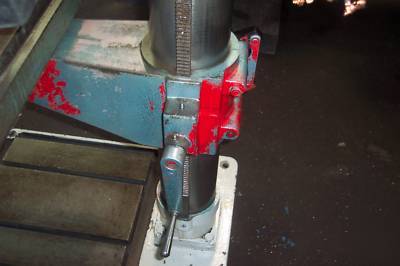

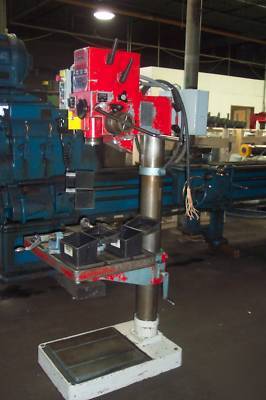

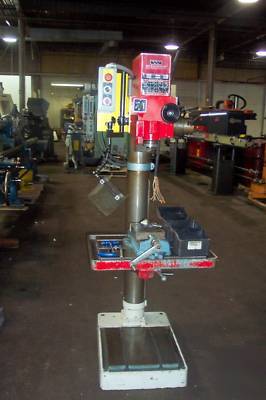

Wilton 24" drill press w/ power down feed 6" vice
TABLE SIZE...............24" X 18"
COLUMN TO MIDDLE OF SPINDLE..........12"

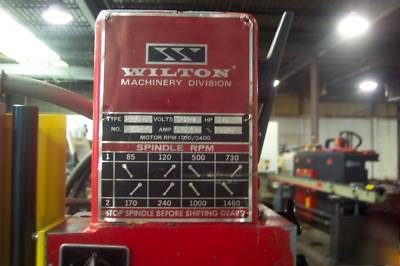

SPINDLE SPEEDS............(8) 85 TO 1460 RPM
SPINDLE FEEDS..............(4) 0.010, 0.004, 0.007, 0.015
ELECTRICS....................220/3PH
OVER ALL DIMENSIONS......... 18" X 28" X 70" H
WEIGHT...................APPROX 1,000 LBS

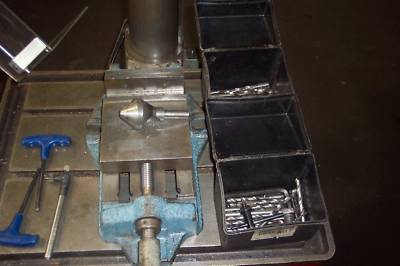

EQUIPPED WITH: 6" MACHINIST VICE, MISC DRILL BITS, CHAMPER TOOL, SPINDLE POWER DOWN FEED.
