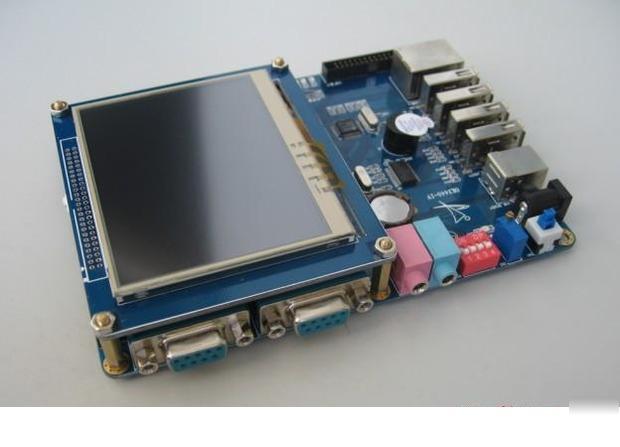

Tft 3.5 screen S3C2440 ARM9 deve board 1GB nand jtag
Linux-ready, hardware/software development kit for Samsung's ARM9-based S3C2440 microprocessor. The 100mm-square Mini2440 board features the workhorse S3C2440 processor clocked to 533MHz, and targets embedded development training applications, industrial control equipment, and consumer electronics devices like PDA devices and GPS navigators.
1258388250.jpg picture by townzbz21265390859.jpg picture by townzbz2
1265390881.jpg picture by townzbz21265390912.jpg picture by townzbz2
1265390920.jpg picture by townzbz2
- Processor - Samsung S3C2440 (ARM920T core) clocked at up to 533MHz
- Memory - 64MB SDRAM (up to 100MHz)
- Flash - 1GB NAND flash ; 2MB NOR flash
- Flash expansion - 1 x SD card interface
- Display - LCD controller with four-wire resistive touchscreen interface with 3.5 LCD displays
- Networking - 1 x 10/100 Ethernet RJ-45 interface (DM9000 chip)
- WiFi - optional WiFi module
- USB - 1 x USB Host; 1 x USB Slave (B-type interface)
- Serial - 1x DB9 connector (RS232), total: 3x ports
- Audio - 1 x stereo audio output interface; 1 x mic interface
- Camera - 1 x 20-pin (2.0mm space) camera interface; optional CMOS or USB cameras
- 1 x 10-pin (2.0mm space) JTAG interface
- 1 x adjustable resistance, for AD conversion test
- 1 x I2C bus AT24C08 chip, for I2C bus test
- 1 x 34-pin 2.0mm GPIO interface
- 1 x 40-pin 2.0mm system bus interface
- Power - RTC battery; power supply interface
- Clock - internal real-time clock and 12Mhz passive crystal system clock source
Dimensions - 3.9 x 3.9 inches (100 x 100mm)
Operating system - Linux 2.6.xx; WindowsCE.NET 6.0
The Mini2440 software development kit (SDK) includes the following components, says Hiteg:
- ADS1.2 development environment
- H-JTAG burning and debugging tool
- SJF2440 flash burning tool for Windows
- Jflash-2440 flash burning tool for Linux (source code provided)
- Bmp2t (picture transformer)
- USB driver for Windows XP/2000
- Vivi bootloader for Linux (source code provided)
- Test programs (source code provided)
- WinCE BSP and example project file
The Linux SDK also offers additional Linux development tools and Linux 2.6.13 kernel source code, as well as Qtopia and "embedded browser" source code.
- arm-linux-gcc-3.3.2 used for compiling Qtopia
- arm-linux-gcc-3.4.1 used for compiling kernel
- arm-linux-gcc-2.95.3 used for compiling Vivi
- Mkyaffsimage YAFFS filesystem image maker
Drivers - DM9000, TFT LCD, audio card, touchscreen, SD card, RTC, expansion serial port, USB camera, USB mouse, keyboard, U-disk
1. MINI2440 S3C2440 ARM9 Development Board (Preload with Linux)
2. NEC 3.5 TFT TouchScreen LCD
7. 1 JTAG board(for H-JTAG)
8. DVD Document with Software WinCE , Linux ,Manual
We guarantee the item you purchase is the item we described here. If the arrives and is not as described, you may return the item for a refund. Returns cannot accepted for any other reason.
Items returned without an RMA (Return Material Authorization) will be refused.
A return request must be completed within 14 days after you receive the item.
