Sca-14 dc-4GHZ cascadable gaas hbt mmic amp sca-14 x 5
(QTY-5) STANFORD MICRO DC-4GHz Cascadable GaAs HBT MMIC AMP.

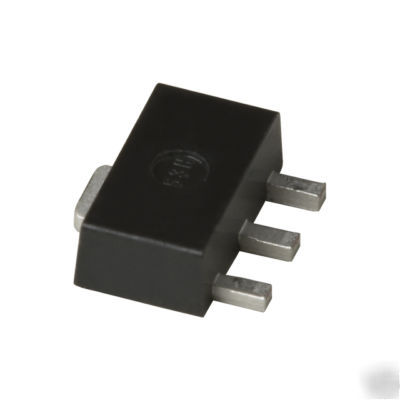

Stanford MicroDevice DC - 5GHz Cascadeable InGap/GaAs HBT MMIC Amplifier, Part Nubmer: SCA-14-BLK in SOT-89 Package.
* Frequency Ragne: DC to 4000MHz
Gain: 20dB at 850MHz; 18dB at 1950MHz
Noise Figure: 4.0dB at 1950MHz
P1 dB: +17.7dBm at 850MHz, +19.5dBm at 1950MHz
IP3: +33.2dBm at 850MHz; +34dB at 1950MHHz
In/Out Return Loss: -20dB/-11dB at 1950MHz
http://pdf1.alldatasheet.com/datasheet-pdf/view/168040/STANFORD/SCA-14.html
