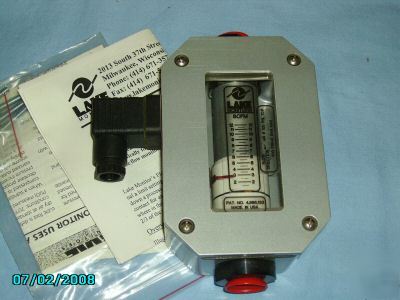

New * * lake monitors 600 psi flow meter alarm bnib
Flow Rate Alarms / Flow Switches
Utilized in applications such as mobile hydraulic equipment and industrial process control, ensures sufficient flows of coolants and lubricants.
Lake Flow Alarms are UL Approved for loads up to 10 amp @ 110/220 VAC.
FIELD ADJUSTABLE ALARM SETTING
Only an allen wrench is required to change the flow alarm setting.
Rugged cast aluminum NEMA type 4X enclosure allows installation in outdoor applications and in environments where liquid tight seals are required.
Positive alarm points using 10 A., dry-contact, SPDT switches reduce the complexity found in standard rotameter OFF/ON/OFF circuits.
cePRE-WIRED WITH CABLE DISCONNECT
The standard Hirschmann interconnection provides easy installation and maintenance of the FLOW ALARM and the system it is a part of.
Allows the designer to install the monitor in any orientation-horizontal, vertical or inverted.
This monitor rapidly pays for itself as it sounds the alarm on incorrect pneumatic, lubrication or cooling volumes, protecting expensive equipment and reducing downtime.
Can be an integral part of a quality control system, yielding consistent system operation.
THE IN-LINE FLOW RATE MONITOR/ALARM SHALL:
* Have field adjustable, dry-contact, alarm setting(s).
* Use the variable annular orifice technique with compression spring recoil.
* Not require inlet or outlet straight plumbing, or require vertical pipe mounting.
* Have a measuring accuracy of 2.5% of full scale in the center third of the measuring range, and 4% in upper and lower thirds.
* Have a maximum working pressure rating of 3500 or 6000 PSIG for liquids.
* Have a maximum working pressure rating of 600 or 1000 PSIG for gasses.
* Have a stainless steel sharp-edged orifice.
* Have a weather-tight NEMA type 4X external construction.
* Be Lake Monitors No. M _ _ _ _ _ _ _ for single alarm applications, or N _ _ _ _ _ _ _ for dual alarm applications.
