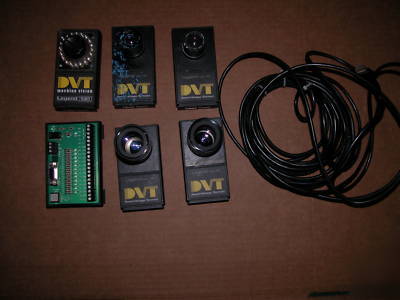

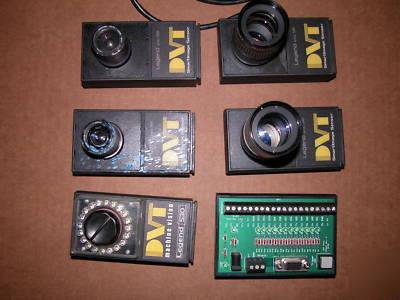

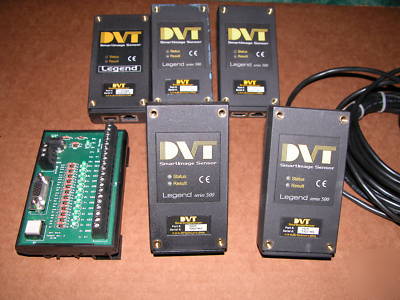

Dvt, machine vision,, sensor legend 530
DVT s Windows -based FrameWork softwareincludes all of the tools and functions normallyassociated with high-end vision systems.
112mm x 60mm x 30mm (not including lens)Four M4 threaded holes (on the back of unit), 7.9mm depth170g/6oz (without lens or integrated light)24V DC, 210mA (or minimum 5W supply), regulated and isolated.Additional 5W required for integrated light option. Additional powerrequired for DVT LED lighting.Operating Temperature: 0-45o C, 32-113o F4.8mm x 3.6mm (1/3" format) CCD, 640 x 480 pixel resolution,7.4 m x 7.4 m pixels10 s 1 second exposure timesCS mount standard, C mount-capable with optional adaptorRJ-45 for 10/100 Mbps Ethernet communications, 10 pin keyedmodular connector for power and digital I/O24V DC regulated, 8 configurable inputs and outputs, NPN (current sinking)inputs, PNP (current sourcing) outputs, active high signals. Inputs can sinkup to 1.5mA and outputs source a maximum of 50 mACE certified
5 (five)DVT, Machine vision,, sensor Legend
