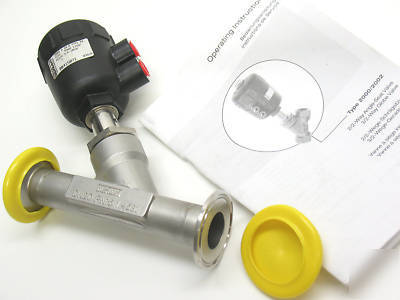

Burkert 2000 angle valve 1" tri-clamp ss 2-way flow, nc
ITEM: BURKERT Type 2000 Pilot BURKERT Type 2000 Model# 2000-A-20,0-PTFE-VA Pilot Operated 2-Way Angle-Seat Valve, Product #415071, 1"/1 " Tri-Clamp Ends (approx. 15/16" Bore), 3/4" seat ID Opening (DN20 Size), 316 Stainless Steel (PN16, 1.4581), "A" Control Function Actuated Normally Closed w/ Spring Force (Spring Return), PTFE Plug Seal, Pilot Pressure range: 3.9 to 10 bar, Pmed: 11 bar, Hazardous Locations Code: Ex II 2 G/D Ta T=135 C", TC43, CE Mark.
"BURKERT 2000 Angle-Seat Valve - Waterhammer-free for liquid applications. Widely used within heat exchange systems in the food and beverage, pharmaceutical and biotechnology industries. The Type 2000 is extremely versatile; it is suited to various media including water, alcohol, oils, fuel, hydraulic fluids, salt solution, alkali solutions, organic solvents and steam. The Type 2000 is ideal for use with heat exchange applications in all process industries, particularly the food and beverage industry and in the pharmaceutical and biotechnology fields.
Externally piloted angle-seat valve with self-adjusting packing gland, intermediate relief and wiper. The angle-seat construction of the body makes possible extremely high flow rates, particularly in comparison to conventional globe valves. The externally piloted angle-seat valve is operated with a single-acting piston actuator. The reliable self-adjusting packing gland provides high sealing integrity.
- Maintenance-free actuator with long-life piston ring and high reliability
- Self-adjusting packing glands with intermediate relief and wiper
- Pilot connection can be rotated through 360
- Low control air consumption due to minimized actuator volume"
SOURCE: From the maintenance spare parts stock of a major pharmaceutical manufacturer, surplus to their ongoing operations.
