8.9INCH tft lcd, toshiba LTM09C362 w or j, 1024X600

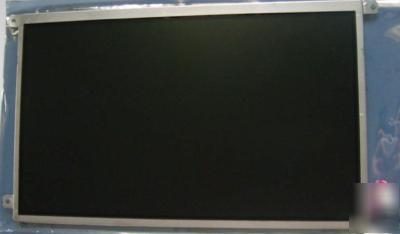

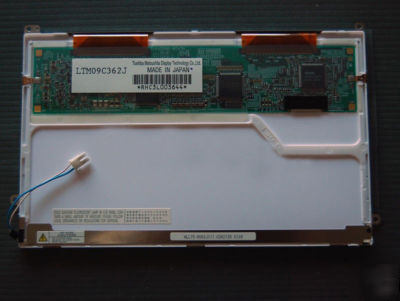

Toshiba 8.9inch TFT LCD panel, LTM09C362 W or LTM09C362 J , Original New A grade, 140USD/pcs.
(1) 8.9 wide display size for notebook PC
Dimensional Outline (Typ.) 224.0(W) x 129.0(H) x 5.2max(D) mm
Number of Pixels 1024(W) x 600(H) pixels
Active Area 195.07(W) x 113.40(H) mm
Pixel Pitch 0.1905(W) x 0.1890(H)
Backlight Single CCFL, Sidelight type
(VDD) -0.3 4.0 Supply Voltage V
FL Driving Frequency (fFL) - 100 kHz
Input Signal Voltage (VIN) -0.3 VDD+0.3 V
Item Min. Typ. Max. Unit Remarks
Supply Voltage (VDD) 3.0 3.3 3.6 V
(VFL) 520 570 620 V(rms) IFL=3.0 mA(rms)
FL Start Voltage (Ta=0 C) 1300 - - V(rms)
Differential Input Voltage (VID) 100 - 600 mV
Comon Mode Input Voltage (VCM) 1.0 - 2.4-VID /2 V
Current Consumption *2 (IDD) - 180 250 mA
*2 *3 Power Consumption - 2.6 - W IFL=3.0 mA(rms)
*1 : Refer to THC63LVDF84A-85 Specification by THine Electronics,Inc.
*3 : Excepting the efficiency FL inverter
OPTICAL SPECIFICATION (Ta=25 C)
Luminance (L) - 140 - cd/m2 IFL=3.0mA(rms)
