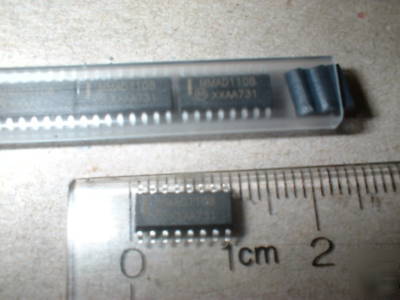

(10) PMMAD1108 surface mount switching diode array #L92
SOIC 16 pin Surface Mount Package
UL 94V-0 Flammability Classification
Weight: 0.128 grams (approximate)
Marking: Logo, device number, date code
Pin #1 defined by DOT on top of package
Operating Temperatures: -550C to +1500C
Storage Temperature: -550C to +1500C
Forward Surge Current: 2.0 Amps (8.3 mS)
Minimum Breakdown Voltage V(BR): 90V
Working Peak Reverse Voltage VRWM: 75V
Continuous forward current IF: 40 mA
Power dissipation (PD): 500 mW
