New mitutoyo height gage model lh 600D make offer now


MITUTOYO HEIGHT GAGE price for quick sale.
MODEL LH 600D,24",INCH/MM,120 V.
Must move NOW!!!!!!!! WAREHOUSE BEING SOLD

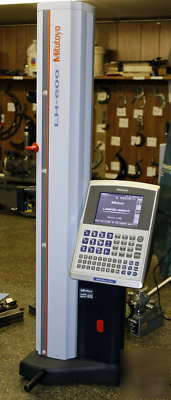

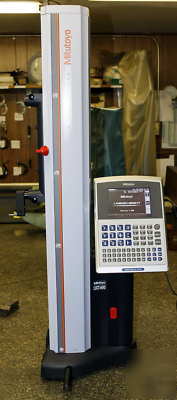

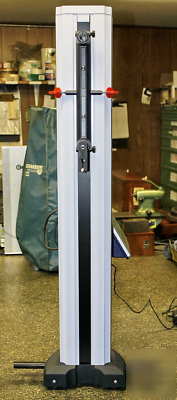

The Mitutoyo LH600D multi-functional height gage makes
2D measurement easy and accurate.

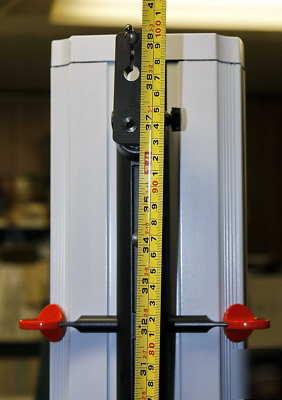

9"x12"x40" Measures up to 39"H
Moves easily on cushion of air*
Automatic motorized measurement
The Linear Height offers advanced performance for reliable and easy 2D measurement.
*Best when used on a granite surface plate

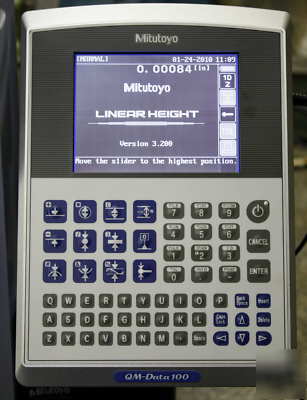

Accuracy and flexibility combine with an easy-to-use touch pad to provide powerful measurement capabilities
Vertical accuracy of (1.3+0.6L/600) m with 0.1 m/0.5 m resolution/repeatability.
Perpendicularity (frontal) of 6 m and straightness of 4 m.
Pneumatic full/semi-floating system allows adjustment of air-cushion height according to the operation (movement/measurement) to achieve rapid inspection speed while maintaining accuracy.
Independent drive/measurement speed setting for quick positioning (max. 40mm/s) and careful measuring.
One-key operation for running a semi-automatic measurement.
Automatic stand-by in repeat measurement mode. The probe automatically moves to the next measurement start position.

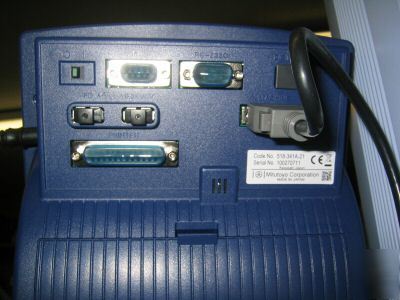

Basic statistical functions are provided and, additionally, the RS-232C data output provides the option of evaluating measurement data externally with SPC software on a PC.
Immediate GO/NG judgment at each measurement.
Large memory capacity for 50 measuring programs and 60,000 measurements.
Off-line part programming for increased measurement efficiency.
Data entry from a Digimatic tool. SPC cable: 936937 (40"/1m), 965014 (80"/2m)
Extensive probe/stylus selection to suit practically any workpiece.
Greater convenience and ease of use through simplified key operations
The touch of a single key automatically runs the instrument until the final result is displayed. This eliminates the need to execute key operations at each step in the measurement process, allowing you to concentrate 100% on workpiece inspection.
Calculation and other measurement functions
Origin setting and probe setting
Coordinate distance calculation
2 elements intersection-angle calculation
3 elements intersection-angle calculation
Tolerance/nominal value setting
Tolerance judgment result output
Switchable measurement speed
Creating/editing/executing a part program
Statistical processing functions
Basic statistical processing
Accuracy-compensation functions
thermal-expansion coefficientMeasures the height of an upward-facing surface.Measures the height of a downward-facing surface.Measures the diameter and center of a hole.Measures the diameter and center of a shaft.Measures the width and center of an inner diameter.Measures the maximum height of a downward or upward-facing surface.Measures the minimum height of an upward or downward-facing surface.Measures the width and center position between two elements.Performs calculation, including angle.Measures the width and center of an outer diameter.Measures the difference between maximum height and minimum height of the upward or downward-facing surface.Sets the ABS origin (absolute reference origin) or INC origin (incremental origin defined by the user), switches between ABS/INC origins and sets the offset ABS originSets the probe type, measures the probe diameter, inputs the probe diameter, saves the probe, loads the probe and shifts the probe position.Suspends or resumes system operation.Displays a comment when operations are paused, measures the position of a hole with a tapered probe, inputs measurement from a Digimatic measuring instrument and measures perpendicularity.
Single keys control the automatic and scanning measurement functions Circle measurement(Hole)Width measurement(Outside)Width measurement(Inside)Height measurement(Upward)Height measurement(Downward) 5
Measuring range (stroke) 0 - 38 (24 ) / 0 - 972mm (600mm)
Resolution (selectable) .000001/.00001/.0001/.001 0.0001 / 0.001 / 0.01/0.1mm
Accuracy Measuring accuracy*1 (1.3+0.6L/600) m, at 68 F L = Measuring length (mm)
(20 C) Repeatability (2 )*1 Plane: 0.5 m Bore: 1 m
Drive method Manual / Motor .20"-1.57" (5 - 40mm), 7 steps
Balancing method Counter balance
Main unit floating method Full / semi-floating with air
Air source Built-in air compressor
LCD Graphic LCD (320x240 dot, with backlight)
Language for display English / German / French / Spanish / Italian / Dutch / Portuguese / Swedish / Czech / Hungarian / Slovenian / Polish /
Number of stored programs 50 (max.)
Number of stored data 60.000 (max.)
Power supply AC adapter/Battery (Ni-MH)
Battery (12AAF712) operation time Approx. 5 hours(Air floating &
Standard accessories 5 stepped probe (12AAF634), Calibration Block (12AAA715), AC Adapter, Cover, Manual
*1 This accuracy is attained when using the standard eccentric 5 probe.
*2 This accuracy is attained when using a lever head (MLH-321) or Mu-Checker (M-411)38.27 (972)23.62 (600) .20 (5 )14.65 (372)10.31 (262)39.88 (1013)11.34 (288)3.25 (82.5)9.33 (237)
Feel free to call or contact Ted, John, Fran at 1-(***)-862-7362 between 8am and 5pm with any questions you may have. In the unlikely event that we're not able to take your call, please email your name phone and/or fax number along with your question(s). We'll get back to you as soon as possible!
