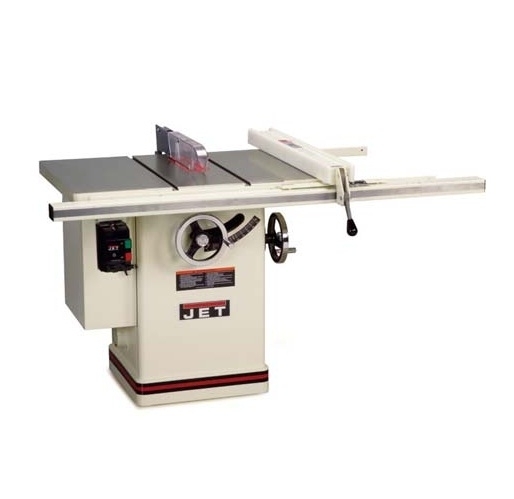

> New jet 10" left tilt arbor table saw w/ fence 708662K
New jet 10" left tilt arbor table saw w/ fence 708662K
Motor 3 HP; 1 Ph 230V Arbor Speed 4,200 RPM Maximum Depth of Cut 3" Dust Collection Minimum CFM Required 350 CFM Table Type Cast-Iron Motor Amperage 14.5 AMP Net Weight 528 lbs. Blade Diameter 10-in Arbor Diameter 5/8-in Maximum Depth Of Cut (at 45 Degrees) 2-1/8-in Maximum Diameter Of Dado 8-in Maximum Width of Dado 13/16-in Table Size (w/ Extension) 27-in x 40-in Table Size (w/o Extension) 27-in x 20-in Dust Port Diameter 4-in Maximum Rip Right of Blade 30-in Table Height 34-in Table In Front Of Saw Blade At Maximum Depth Of Cut 12-in Maximum Rip Left of Blade 12-in
