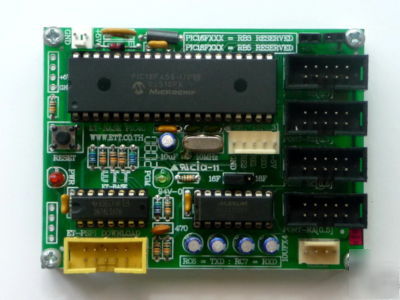

Mcu board - development kit pic 18F458 + programmer
- Support MCU PIC 40 Pins 18F877 , 18F458 and 18F4620
- MCU PIC18F458 40 Pin , Flash 32KB , RAM 1536 Byte , EEPROM 256 Byte
- Frequency Clock 10 MHz (up to 40MHz using Phase Lock Loop)
- I/O high current Sink(25mA)/Source(25mA)
- Low Voltage Programming with WINPIC800 using parallel port
- Included => Download cable (ET-CAB10P V2) , CD-Rom
- User Guide http://rapidshare.com/files/361393546/ET-BASE_PIC40-(***)-458-4620.pdf
- Reserved pin for programming is RB3(PIC16F877) , RB5(PIC16F458 and PIC16F4620)
- Removed download cable when RB6-7 pin are used
- #9 Jumper (16F : PIC16F877 , 18F : PIC16F458 and PIC16F4620)
