Measuring military personnel measure people height
Welcome to Akribis Metrology Ltd

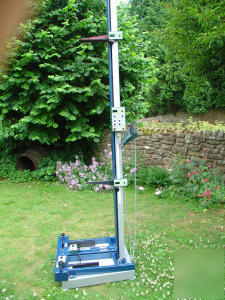

Anthropometric Measuring System (AMS) By ErgoTech
Condition = MOD Surplus New/As New .
"A machine to enhance the study of human body measurement for use in anthropological classification and comparison." ... and also ideal for all types of persons clothing measument requirements!
This is an amazing machine; it will measure all the measurements on a human body for cloth sizes and data gathering etc. it is all done digitally and is great for quick accurate measurements for multiple personnel. For example: in the army soldiers need to have the right sized clothes, this machine will measure a persons Mass, Height, Inside leg length, Foot width, Foot length, Head circumference, Neck circumference, Chest circumference, Waist circumference, Hip circumference (for female): Bust circumference, Under bust circumference
The Anthropometric Measuring System (AMS), an electro-mechanical body dimension-measuring instrument, has been developed by ERGOTECH. The measured critical body dimensions are electronically transferred to a personal computer-based software system where clothing item sizes are allocated according to the body dimensions of the individual.
The body measurement data is stored in a database file and used to update the anthropometric and clothing size databases. The clothing item size data can be used for various logistics auditing and planning functions.
The AMS consists of an electromechanical measuring instrument linked to a personal computer with size allocation and database software.
The AMS presents measurement information in alphanumeric format. Both the measurement parameter and value are continuously displayed on the instrument in close proximity to the measurement position. The six measurement stations are:
Station 2 - Upper body vertical measurements
Station 3 - Lower body vertical measurements
Station 6 - Electronic tape measure for all circumference measurements
Each station can be easily programmed to measure up to 50 measurement parameters. In addition, different measurement variables can be programmed for male and female measurements.
A measurement value is registered on the personal computer by pressing a pushbutton on the applicable station of the AMS. The measurement value is verified on the AMS and conveyed to the computer.
The size allocation software receives the electronically encoded measurement value, allocates the appropriate clothing size for the measurement, and stores it in the database. At the end of the measurement process a Size Allocation Sheet is printed, which presents personal information, measured values for that individual and the associated size for each clothing item.
Measures all aspects of the body
All units measured in Millimeters
Can be linked up to a computer for data collection and printing
Anthropometric measuring system
Power cord and computer cable
2400mm x 710mm x 650mm (HxWxD)
Mass, Height, Inside leg length, Foot width, Foot length, Head circumference, Neck circumference, Chest circumference, Waist circumference, Hip circumference (for female): Bust circumference, Under bust circumference
Please see Website links below for more information:-
(It s best to and then click Open in New Window )
http:// /SubSites/ERGO/ERG02_08.asp
Please note, that due to this item being quite heavy and tall, local pickup or local delivery recommended.
