Amana flush trim w/ball bgr guide 1/2 shk 3 flute 47118
Flush Trim Router Bits with Ball Bearing Guide
Use any of the flush trimming bits below for laminate work or for template and pattern work. For template application, the bearing follows the template, while the cutting edges trim the workpiece. With the router handheld, the template is on the bottom of the work. With a table-mounted router, the template is on top.
A two-flute bit is a good general-purpose choice, providing fast cuts and good finishes. Excellent for template work.

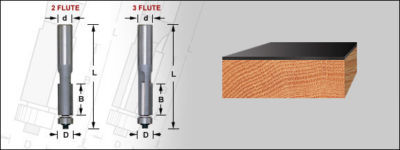

flush trim router bits 2 flute and 3 flute
*1/4" diameter for closer inside corner cutting only; bearings not guaranteed due to size.
Replacement Bearings: *1/4" dia. use #47723, 3/8" dia. use #47702,
1/2" dia. use #47706, 3/4" dia. use #47714.
Undersized bearing (.492" dia.), use #47715 - for use after re-sharpening (1/2" dia. only).
Single Flute, for the RV industry.
Replacement Knife #RCK-262 (2 Required)
For an extremely smooth finish, choose the three-flute configuration. It is especially good to use on laminates that tend to chip easily.
Standard replacement bearing (.500" dia.), use #47706.
Undersized bearing (.492" dia.), use #47715 - for use after re-sharpening.
Durable ball bearing for added stability.
For a super-smooth cut finish, use a four-flute bit. Feed rate is reduced, and chipping is virtually eliminated.
Standard replacement bearing (steel) use #47714.
Optional Delrin replacement bearing (steel) use #47709, for solid surface application.
