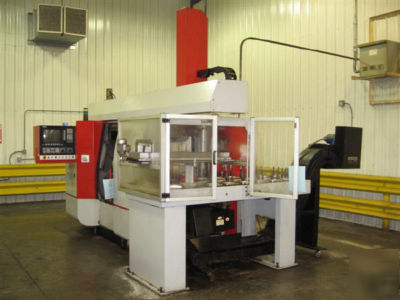

Emco-maier emcoturn 465DS twin-spdl cnc turning center
EMCO-MAIER EMCOTURN 465DS TWIN-SPINDLE
New 1999, Serial No. R4B-V01-M37004
Siemens 840D 6-Axis CNC Control
(2) 12-Position Turrets w/ Live Milling All Stations
7" 3-Jaw Chuck On LH Spindle, Collet Chuck On RH
Tool Presetter For Both Turrets - C Axis Left & Right
Sub Spindles - Coolant System - Chip Conveyor
Automatic Gantry Loading System
Maximum Diameter Bar Stock.................. 2.56"
Swing Over Bed, Maximum..................... 14.5"
Turning Length,............................. 7.4"
Spindle Nose................................ A-6
Cross Travel (X-Axis)....................... 9.5"
Longitudinal Travel (Z-Axis)................ 7.4"
Longitudinal Travel RH Spindle (Z2-Axis).... 26.77"
Turret Index Time........................... 0.1 Second
Toolholder.................................. VDI 30
Main Spindle Speeds, Range.................. 0-4000 RPM
Live Tool Spindle Speeds, Range............. 0-4000 RPM
Left Spindle Drive, Horsepower.............. 20 HP
Right Spindle Drive, Horsepower............. 15 HP
Live Tool Drive Motor, Horsepower........... 7.5 HP
Electrical System........................... 440/3/60
PRICE: F.O.B. OUR WAREHOUSE................. $99,500.00
