Clark aiken sheeter 65" wide dual knife type srb

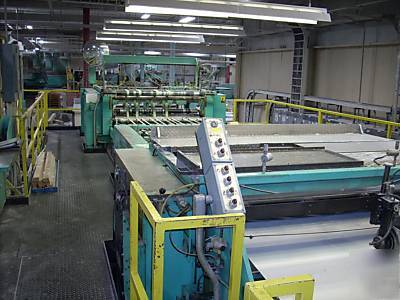

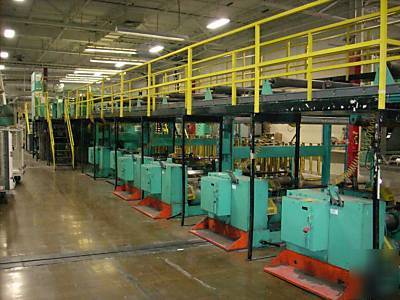

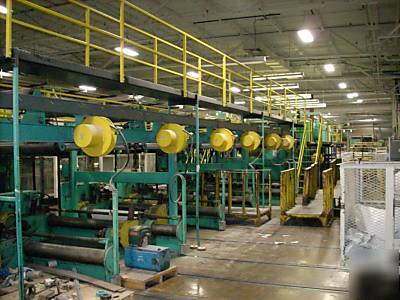

Used 65" Clark Aiken Dual Rotary Knife Sheeter Mfg 1985 with (6) Shaftless Unwind Stands.
S/N 3928; 3929;3930;3931;3932;3933
Clark Aiken guide roll structure
(6) Dynoweb tension controllers - dancer roll type tension system
Montalvo disk type pneumatic brakes, (2) per stand

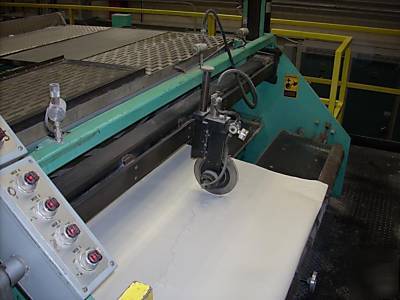

Basic Clark Aiken single slitter unit with EMT Shear cut assemblies
70" SRB Dual Rotary Knife 66" usable working width

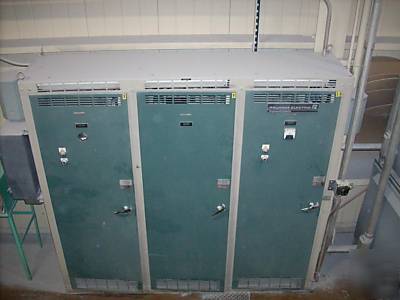

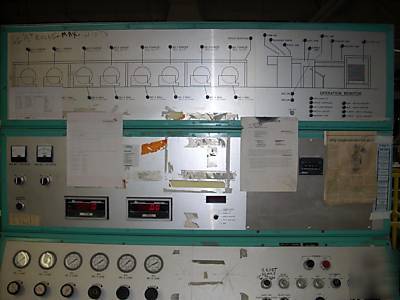

Reliance main drives and cabinets

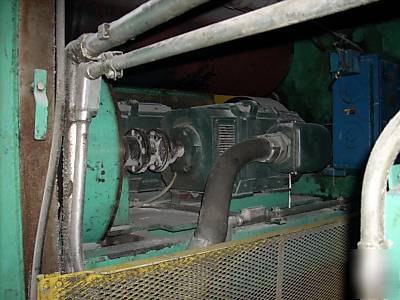

Dual main motors, draw roll, knife drive
Draw rolls, bottom steel drum, top polyurethane covered with chevron groove pattern
Drag link type gearing for synchro cutting
Spare cross cut drums rotating knives **
. Electronic sheet length adjustment

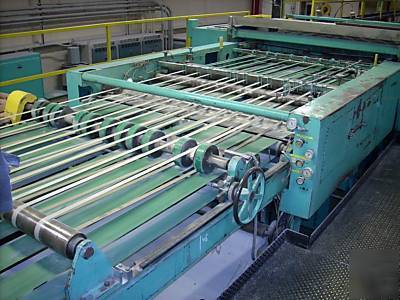

. High speed overlap and layboy station w/reject gate
High speed tapes driven through PIV from main draw roll motor

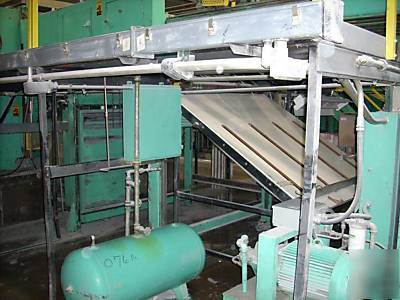

. Upgraded Maxon air foil overlap in the mid 1990's
Ran 50# paper stock through a variety of light boards. Good operating condition.
