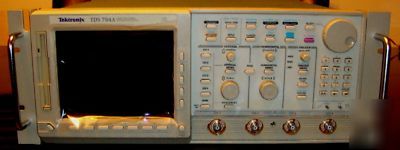

Tektronix TDS784A 1GHZ digital oscilloscope
Tektronix TDS784A 1GHz Digital Oscilloscope
* InstaVuTM Acquisition (up to 400,000 wfms/sec)
* 500 MHz bandwidth (TDS 754A/744A/724A);
* Sample rates to 2 GS/s (TDS 782A/754A/744A);
* 2 input channels (TDS 782A/724A);
* 4 input channels (TDS 784A/754A/744A)
* Pulse width, 1 ns glitch; runt, pattern, state, triggering
* 1 mV/div -10 V/div sensitivity
* Infinite and variable persistence
* Record lengths to 500,000 points (250,000 points on TDS 782A/724A)
* 8-bit vertical resolution and up to 13 bits with HiRes
* High resolution color monitor
* 3.5 inch DOS floppy disk drive (standard)
* Tek TriStarTM (DSP) processor
* Slew Rate, Setup & Hold Violation, and Time-out triggers
* Waveform pass/fail testing
* Advanced signal processing functions
* Desktop publishing outputs
* Segmentable acquisition memory
* Direct Readout in "Amperes" and "Watts" using P5200 and TCP202 Probes
* HP Deskjet printer support

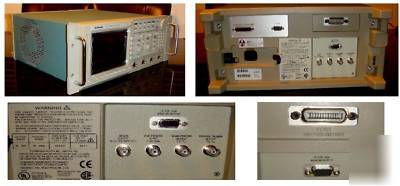

Unit was pulled off from the test station since 2002 after about 1 year of system test, stayed in storage since then. The scope is in very good condition, rarely used, re-tested and confirmed working well.
Package Contain: TDS784A Scope and power cord.
