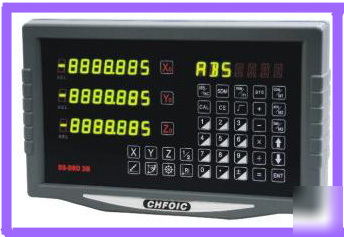

Sinpo 3-axis digital readout box (display, console)
This is a listing of a 3-axis digital readout box (display, console) only. NO SCALES ARE INCLUDED.
Specifications of Digital Readouts
1) Input power voltage AC 100V 240V; 50 HZ/60 HZ
2) Power consumption 7-14VA Fuse: F 2A/250V
3) Operating temperature 0 45
4) Storage temperature -30 70
5) Relative humidity <90 (20 5 )
7 Dimensions 308 194 80 Unit mm)
8) Number of axes displayed 3 coordinates
9) Display: 7 bits display with sign and information window
11)Scale Signal TTL square wave, RS-422/EIA-422, ~1vpp
12)Frequency of input signal <100kHz
13)Resolution of length 10 m 5 m l m 0.5 m .
14)Keyboard: contact key slightly.
15)Grating scale:Pitch is 0.02mm or 0.01mm,supply voltage is +5v. .
Non-Volatile Memory (data retained in event of power loss);
Automatic Recognition and Storage of Scale Zero Reference Point
Inside Outside Profile Function;
