New reducer 2.38" worm reducer flange in/solid out

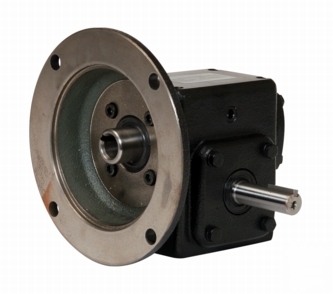

New Worm GearBox 2.38" Center Distance. 56C Flange Input/Solid Output Shaft. Available in the following ratios: 5:1, 10:1, 15:1, 20:1, 30:1, 40:1, 50:1, 60:1. Also available in left or right output. Double tapered roller bearings on input and output shafts. Universal mounting. Units are filled with Mobil#SHC634 synthetic oil. Two Year No Fault Warranty.
Key Dimensions F=5" BE=2.88" Shaft=1.125" LL=2.5" (Center of Output Shaft) 56C/145TC Input Flange
Boston F724 Morse(Invader) 724F Browning(Raider) N/A Ohio Gear BMQ2238
