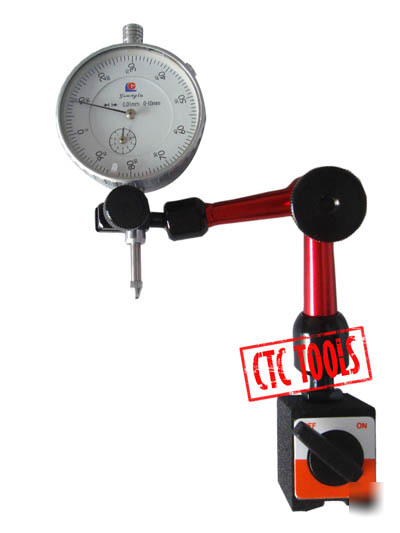

New industrial dial indicator gauge & magnetic base D14
This Is A "Brand new" Precise Measuring Tool For Professionals And Hobbyists Demanding Ease Of Operation And High Quality Work Results.
* 1 Pc. Plunger Type Dial Indicator Gauge In Fitted Plastic Box
* 1 Pc. Magnetic Base With Hydraulic Arm
* Dial Graduation 0.01MM. Maximum travel 10mm
* Rotating Bezel With Lock For Zero Setting
* Outer Ring Diameter 60MM
* 8MM (5/16") Clamping Stem Diameter
* Interchangable Point M2.5
* Rear Lug With 6MM (1/4") Hole
Magnetic Base With Hydraulic Arm* Sealed Hydraulic System. The Turning Of The Tension Knob Results In High Pressure In The Joints, Holding The Aluminium Arms Absolutely Rigid
* Multiple Holding Positions Through 360 Swivel Ball Joints With One Knob Locking System For Fast Set-Up
* Reduced Scale For work In Tight Areas
* Strong Magnet With On/Off Switch
* Quickly Attached To Any Magnetic Surface
* Two Magnetic Mounting Surfaces: Bottom & Back
* V-Shape On Bottom Surface For Firm Holding On Round Or Flat Surface
* 5/16 (8mm) Clamping Hole For Standard Indicator Stems
* Universal Dovetail Clamp For Dial Test Indicators
* Overall Reach: 7.5" (190mm)
* Base Size: 30mm (Width) x 37mm (Depth)
* Delivered In High Quality Anodized Finish
