New eastern air device stepper motor LA23ECK-P300

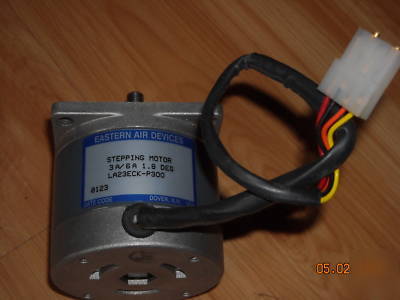

NEW Eastern Air Device Stepper Motor LA23ECK-P300
*Precision: 1.8 degrees or 1/200th of a revolution
Accuracy: +/- 3% or +/- 0.054 degrees
EAD also specifies that positional accuracy is non-cumulative. This means that a rotation of 10 steps will yield an angle offset from the starting position by 18 degrees +/- 0.108 degrees. (The positional accuracy of the start point plus the positional accuracy of the end point) Rotating through 200 steps will return the rotor to the exact start point.
* 50.8 N-cm max. continuous holding torque
