> New 10 x L7915 LM7915 7915 voltage regulator -15V 1.5A

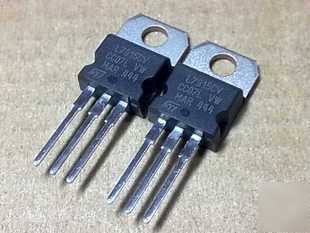

New 10 x L7915 LM7915 7915 voltage regulator -15V 1.5A
* Output Voltage Tolerance of 5%
* Internal Short-Circuit Limited
* Direct Replacement for LM7915
* Post regulator for switching DC/DC converter
* Bias supply for analog circuits
Electrical Characteristics (LM7915)
( TJ = 0 to 125 C, VI = -23 V, IO = 500 mA, CI = 2.2 F, CO = 1 F unless otherwise specified)
IO = -5 mA to -1 A, PO 15 W VI = -18.5 to -30 V
VI = -17.5 to -30 V, TJ = 25 C
IO = 1 A, TJ = 25 C, VO = 100 mV
