Universal coin mech coin acceptor validator pc timer
"Timer board for Computer control, LCD included, No Software required."
Brand New Coin Operated Controller/Acceptor Timer Kit turns your PC computer into Coin Operated public PC
Connect to your computer PS/2 Keyboard and Mouse port and reconnect the Keyboard and Mouse to the controller, it becomes a Coin Operated Computer immediately. The coin acceptor accepts Quarters (optionally we have bill acceptor model for accepting Dollar bills $1 & $5). Owner can set the pay rate by minutes. Minimum Use rate can be selectable, e.g. 15 minutes minimum. All setting by two push buttons on the control board and displays on dot matrix blue light LCD. Works for all computer flatform without software installation. This is the simplest way to get control on PC.

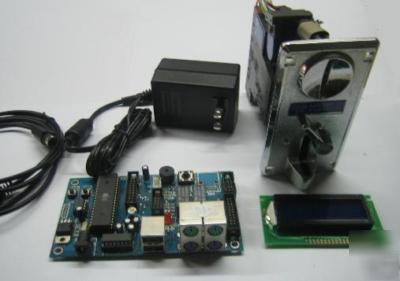

Model: TT-1-CA(LCD) kit without metal casing

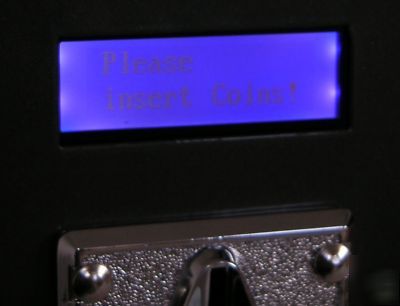

-Digital timer & LCD dot matrix displays Text : "xxx Min." and Time remaining
-Universal single coin acceptor for one coin (coin thickness less than 3mm is o.k.)
(can be upgraded to to multi-coin acceptor for 6 coins, or bill acceptor US bills 1/5/10/20)
-PS/2 ports control: Keyboard & Mouse control
-Keyboard & Mouse STOP function
-USB ports: One extra USB device control
-Digital timer adjustable (1-999 minutes)
-Functions: Push button to set timer (with minimum start timer selectable)
Beeper to warn user of inserting more coins before timer close
2-minute PC boot state timer-open function
(only our controller has this function so your motherboard can boot without keyboard error)
MCU is specially developed for computer hardware control with latest dot matrix LCD timer display TEXT in English
(*this is not old type LED which only indicate three number)
-Install to your own wooden or metal case
-Plug-n-Play Ready to work by connecting to your computer PS/2 ports & one USB port
-No software installation required. Works on any Windows platform.
- COM kit with cable to computer :it can automatically shut down Windows programs when user forget to close his browsers, upon timer reached zero minute. This provides better security for user's personal data (this function -add US$18).
-Machine made industrial grade metal case with panel lock and coin drawer lock - add US$95.
PLEASE VISIT: http:// .hk/tt1_spec.htm
For questions and enquiry please email to us ****@com2000.com.hk / Tel: 852-90709008
