Power controller, variable power supply 240V - 25AMP
240V & 110V (25A) Motor, Appliance & Speed Controller
Power & Speed Controller 110V / 240V
Loads of applications and with a 25 amp peak rating! With this power controller you can regulate incandescent lamps, heaters, hand drills, motors etc. via the supplied potentiometer. 2 operating voltages: 110vac & 240vac. The rated contstant load is 18A but can peak at 25A max. At 240vac this corresponds to 4000va.
Important Note: The module HAS to be mounted on a heat sink or cooling plate.
If it is a DC appliance that needs to be controlled, the module can be installed at the power transformer input side to control the input voltage, thus allowing full control over the DC output too. Perfect for loads of power, voltage & speed control applications.

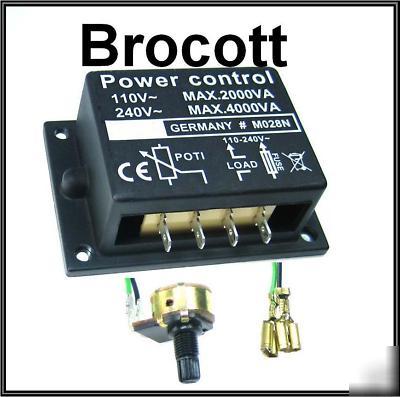

The power controllers are supplied with the potentiometer & leads
* Operating Voltage: AC 110...240V, 50...60 Hz
* Max. Current: 25A (constant duty: 18A WITH HEATSINK))
* Max va Rating: 4000va at 240vac / 2000va at 110vac
* Control: Via Rotary Potentiometer
* Loads: For ohmic or inductive loads
* Dimensions: approx. 86 x 60 x 33 mm
