New birmingham 10' x 1/4" heavy duty hydraulic shear
NEW BIRMINGHAM 10' x 1/4" HEAVY DUTY HYDRAULIC SHEAR
New "Birmingham" Heavy Duty Hydraulic Shear
Model: H-1065-C (10' x 1/4") - made in China
120" x 1/4" Mild Steel & 3/16" Stainless Steel

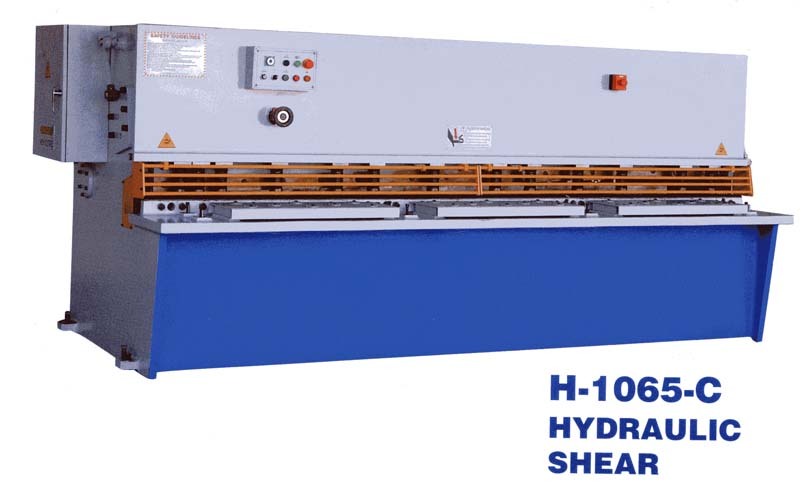

Note: Images shown are of models H-1065-C & H-12130-C
- High carbon, high chrome shear blades
- Manual quick change blade gap adjustment
- Front controlled power operated backgauge
- Hydraulic, electrical overload protection
- Automatic swing-up backgauge
- Hold-downs faced with anti-mar neoprene
- Blade guard, micro switch protection
- Squaring arm, 43-1/2" from blade to end
No load strokes per minute: 14
Range of back gauge: 0.78" - 24"
Overall Size: 13.2' L x 5.3' D x 5.3' H
OPTIONAL ACCESSORIES (call for pricing):
- 3-Axis CNC Programmable Backgauge SIEMENS:
Controls backgauge depth, blade gap adjustment, stroke length
Can be operated in manual or automatic mode
- "Go-To" Backgauge, Mitsubishi, 36" travel, 10 steps
- Front & rear protection guards
