7X-45X stereo zoom microscope W1.3MP usb digital camera
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 1
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 2
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 3
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 4
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 5
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 6
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 7
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 8
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image 9
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image A

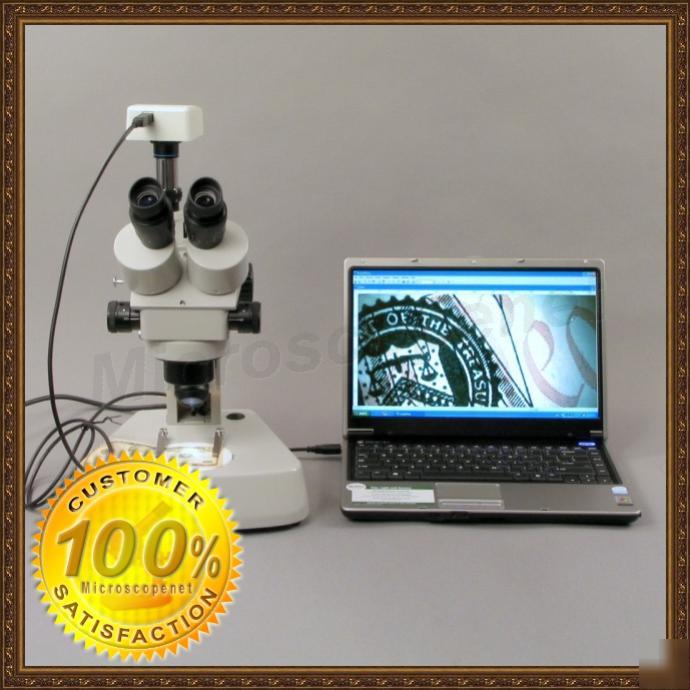

Trinocular 7x~45x Zoom Stereo Microscope
with 1280x1024 (1.3MP) Pixel USB Digital Camera
Trinocular 3.5x-90x Zoom Stereo Microscope with 1.3MP Digital Camera Image
* Top quality optical glass elements
* High speed USB 2.0 connection
* Software included for Windows 2000/XP/Vista32
* Sharp erect stereo images over a wide field view
* Long working distance allows enough operation space
* Easy mounting ring lights (sold separately)
* Head: 45 Inclined 360 rotatable trinocular.
* Separate photo-tube focus adjustment
* Beam split lever enables photo-tube or left eyetube
Magnifications and Objectives::
* Eyepieces: wide field WF10X/20
* Total magnification: 7x~45x
* Auxiliary objective/ring light mount thread: 50mm in diameter
* Capture true color video or image on your computer
* 1280x1024 pixels (1.3MP) high resolution digital camera
* Built-in 0.5x reduction lens to get larger field of view
* Eyetube conversion adapter with rubber ring fits 30mm and 30.5mm stereo microscopes
* Eyetube diameter: 23.2mm for standard compound microscopes
* Advanced software applications included
* USB cord length: 6 feet (183cm)
* Incident (upper) illuminator: 12V/10W halogen, 90 adjustable inclined angle range
* Transmitted (lower) illuminator: 12V/10W halogen
* Each light has its own intensity control switch
* Power supply: 100V-240V 50/60Hz (US and Canada plug)
* Working distance: 3-3/4" (95mm) without 0.5x auxiliary lens and 6" (152mm) with 0.5x auxiliary lens
* Focus adjustment stroke: 2-3/8" (60mm)
* White/black plastic stage plate: 3-3/4" (95mm) in diameter
* Clear glass stage plate: 3-3/4" (95mm) in diameter
* Large sturdy metal framework
* Dimension: 10" x 10" x 18" (25.4cmx25.4cmx46cm)
* Net weight: 13 lb 4 oz ( 6kg)
* Package volume equivalent weight: 33 lb (15kg)
* Trinocular stereo microscope
* A pair of WF10X/20 eyepieces
* Black/white high quality plastic stage plate
* A pack of lens cleaning paper
* Extra halogen bulb 12V/10W with reflector
* Extra halogen bulb 12V/10W
* USB 2.0 digital camera 1280x1024 with built-in reduction lens
* 1 CD including Driver for Windows 2000/XP/Vista, and processing software applications
* Eyetube conversion adapter with rubber ring for stereo microscopes
Optional Accessories (sold separately):
* Gooseneck fiber cold light (ring type and Y type)
* Digital camera adapters (Nikon, Olympus, Canon, Ricoh)
* Mechanical specimen stage (D95mm)
* Spare halogen bulb 12V/10W
* Spare halogen bulb 12V/10W with reflector
Click the button above to view the list of accessories compatible with this product XV431C10
