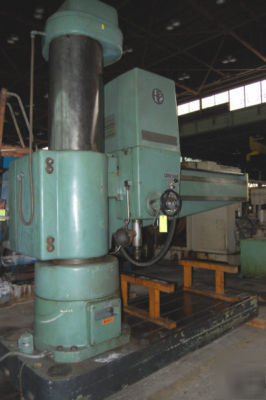

7' 19" hcp radial arm drill #25836
New 1977, Serial No. 177/165, Model GRV554
Arm Length............................. 7'
Horizontal Head Travel On Arm.......... 68"
Drilling Diameter, Mild Steel.......... 2.5"
Drilling Diameter, Cast Iron........... 3.125"
Spindle to Column, Maximum............. 78.75"
Spindle to Column, Minimum............. 15.375"
Spindle to Base, Maximum............... 71"
Spindle to Base, Minimum............... 17,75"
(15) Spindle Speeds, Range............. 12.5 to 1600 RPM
(15) Spindle Feeds, Range.............. .0025 to .0984 IPR
Base Working Surface, L x W............ 83.5" x 44"
Main Motor KW Rating................... 7.5 KW
Arm Motor KW Rating.................... 2.2 KW
Hydraulic Motor KW Rating.............. .75 KW
Clamping Motor KW Rating............... .37 KW
Overall Dimenstions, L x W............. 11'3" x 4'1"
Overall Height......................... 11"6"
Weight Approximately................... 17000 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $14,500.00
All machines/equipmient subject to prior sale.
