> Trimble EM400 masts, LR410 receivers, CB420 control box
Trimble EM400 masts, LR410 receivers, CB420 control box

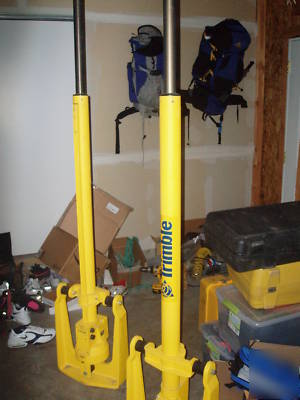

2x Trimble ER400 electronic masts- both in great condition, hardly a scratch on them(keep in mind they were on the front of a dozer). Each one has 1x 10-pin connector and 1x 6 pin connector plug.

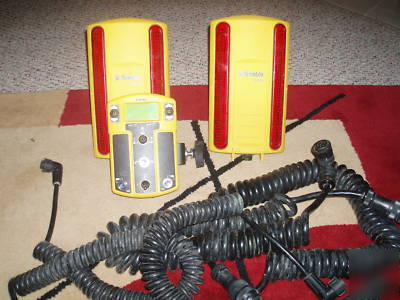

2x Trimble LR410 laser receivers- both are in great condition, slip right over the top of the masts and clamp on. Both in great condition, so scratches, work excellent. They have 1x 6 pin connector.
2x 6-pin wires that connect the receivers to the masts.
1x Trimble CB420 control box- this is the user interface that mounts in the cab of the machine. It has an LCD screen and toggle switches to make all of the adjustments and navigate through the menus, turn system on and off, adjust finish grade, etc. It is in great condition, works perfect, never had any problems with it.
2x 10-pin connectors that connect the masts to the front of the machine.

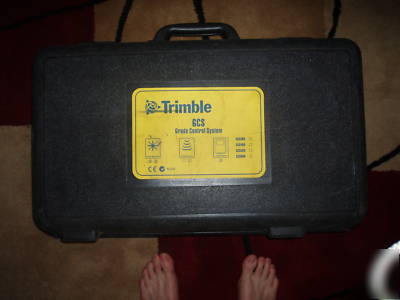

1x case for receivers and control box
about 5 different manuals from trimble and CAT about the equipment and how to use it.
I have never installed this system before... I am an operator, so I don't know everything needed to make this system work, please do your own research since needs and machines vary so much. What I do know is that you will need a solenoid valve body that allows the computer to control your hydraulics, some kind of junction box and wiring to go from the front of the tractor to the computer and convert the 10 pin connectors to 6 pin. A thumb switch on the bucket control lever to turn the "auto level" function on/off. There may be more, but I don't know.

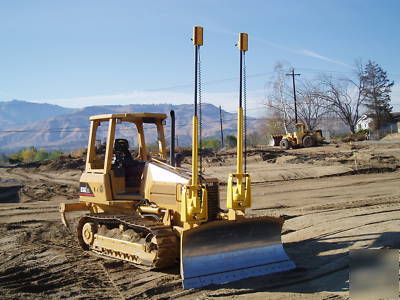

I know that this will get you most of the way to having the laser system on your dozer, if you need any more information for your research, please ask me, I will respond quickly.
