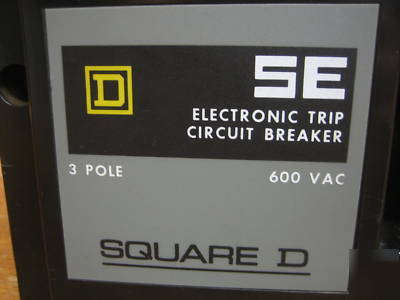

Square d 3000 amp 3000A SED363000LIGES508 SED363000LIG

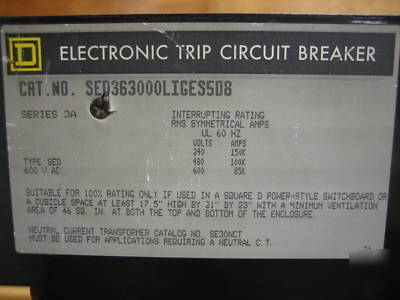

Breaker Catalog Number: SED363000-LIG-ES508

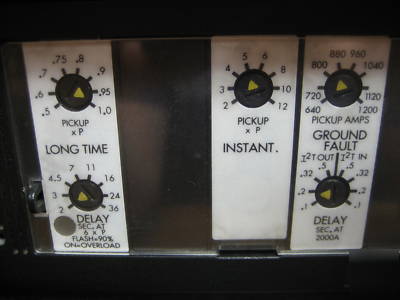

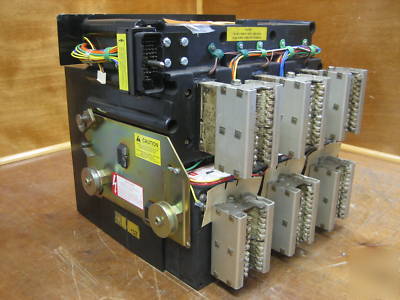

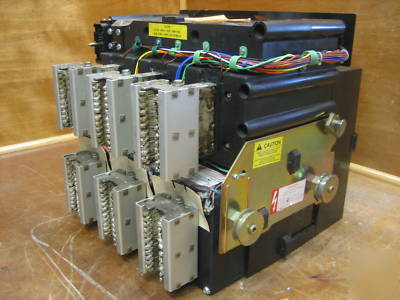

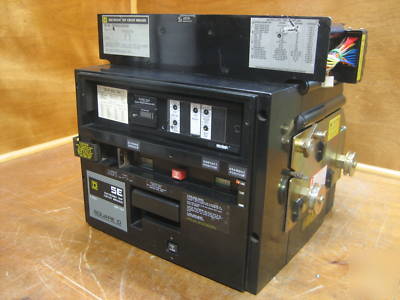

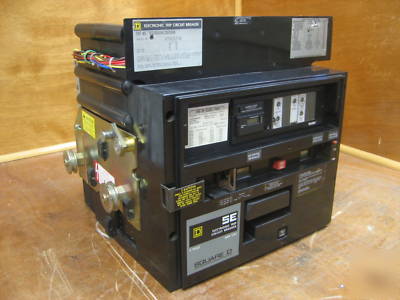

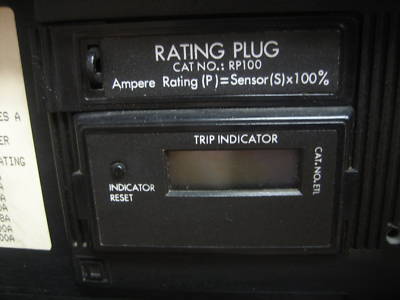

Each 3000Amp SED363000LIG-ES508 Square D Industrial Circuit Breaker is in Excellent Condition both Externally and Internally and has been used very little. The micrologic trip has Long Time Delay / Pick-up, Instantaneous Pick-up, and Ground Fault Delay / Pick-up. This is a Draw-Out (D/O) breaker.

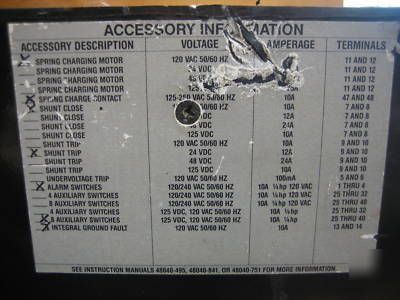

This Breaker is equipped with:
Spring Charging Motor - 120 VAC, 50/60Hz
Spring Charge Contact - 125-250 VAC, 50/60 Hz
Shunt Close - 120 VAC, 50/60 Hz
Alarm Switches - 120/240 VAC, 50/60 Hz
8 Auxiliary Switches - 125 VDC, 120 VAC, 50/60 Hz
Integral Ground Fault - 120 VAC, 50/60 Hz
http://w3.squared.com/catalog/173S/html/sections/11/pdf/SD173%2011-01.pdf
