15 ton hannifin "c"-frame hyd straightening press 25230

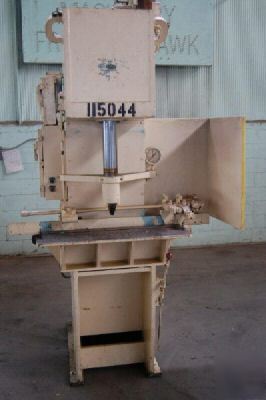

15 TON HANNIFIN "C"-FRAME HYDRAULIC
New 1964, Serial No A-43052, Model S.15.36.12.4.2.SP
Straightening Fixture With (2) Roller Rests
Tonnage Capacity............................. 15 TON
Stroke Length,............................... 12"
Daylight, Maximum............................ 19.125"
Throat Depth................................. 8"
Cylinder Bore Diameter....................... 5"
Ram Diameter................................. 3.5"
Table Dimensions (Overall) W x L............. 12" x 36"
Operating Pressure........................... 1530 PSI
Overall Dimensions, W x D................... 3' x 4'
Overall Height............................... 8'6"
Weight, Approximately........................ 3100 LBS
