X-rite autoscan spectrophotometer DTP41B xrite - nice

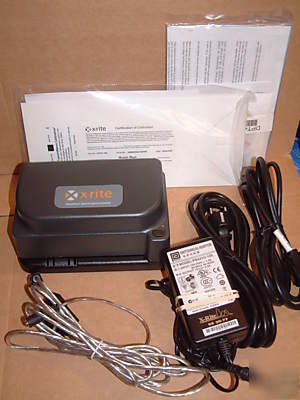

This is a lightly used X-RITE DTP41B model Auto-Scanning Spectrophotometer. The label under the instrument indicates DTP41BRH+XE. The calibration sticker shows this was recalibrated Oct 2008 and is good for a year. The Calibration card agrees.
Cables for connection to computer
US and Oversees power adapter switching 110-240VAC power adapter.
CD Rom with manuals & Utilities
This is in very good condition. I have connected it to the power supply and run it through a manual calibration which it does satisfactorily. A copy of the operating manual is also available online at the following URL: http:// /documents/manuals/en/DTP41-500_AutoScan_Spectophotometer_Manual_en.pdf )
45 /0 per ANSI/ISO 5-4 (IT2.17) (Reflection)
180 /0 per ANSI/ISO 5-2 (IT2.19) (Transmission)
Spot Size at Sample: 1.8mm (.070 in) in scan direction, 2.5mm (.097 in) wide
Light Source: Gas Pressure @ 2850 K
Spectral Sensor: DRS Technology, 24 point engine, 31 point reporting
Spectral Range: 400nm to 700nm
Illuminant Types: A, C, D50, D55, D65, D75, F2, F7, F11, & F12
Response Type: Status T, E, I, A, M, & Others
Measurement Time: Approx. 0.25 seconds per patch (7mm patches)
Reflection Measurement (DTP41 & DTP41/T)
Inter-instrument Agreement: 0.3 E cmc avg typical (avg, based on 12 BCRA tiles)
Measurement Range: 0.00D to 2.50 D; 0 to 160% R
Repeatability on White: 0.2 E max; 0.01D max
Inter-instrument Agreement: 0.02D or 2% typical, 0 to 3.0 D
Measurement Range: 0.00D to 5.00 D; 0 to 110% T
Repeatability: 0.01D or 1% 0 to 3.5 D (Visual)
Calibration: Calibration strip for Reflection
Environmental: +10 (50 F) to +40 C (104 F) operating,
Power Required: 12v DC, Universal 100-240VAC Adapter; 50/60Hz
Dimensions: Height: 88mm (3.45 in); Width: 184mm (7.25 in); Depth: 114mm (4.5 in)
Weight: 890g (1.96 lb) , with /T option 1090g (2.40 lb)
