Varil dbm-100BS double balanced mixer 0.2-600 mhz

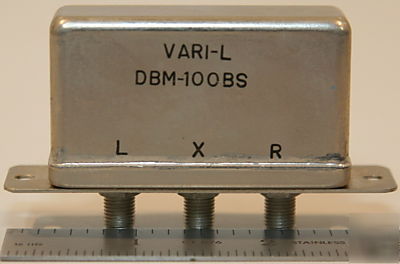

Varil DBM-100BS Double Balanced Mixer 0.2-600 MHz
Varil DBM-100BS Mixer Specifications:
* LO: +10 dBm (High side LO)
Overall Frequency Range in MHz:
* 0.2-1.0 1-10 10-100 100-600
* Conversion Loss, dB: 10 8.5 7.5 10
* L-R Isolation, dB: 50 50 45 35
* L-X Isolation, dB: 45 45 40 20
* R-X Isolation, dB: 45 43 23 20
* Impedance: All ports 50 ohms
* 1 dB Compression Point: +2 dBm
* 1 dB Desensitization Point: 0 dBm
* 3rd Order Intercept Point: +13 dBm
* Noise Figure is within 1 dB of conversion loss
* LO Power Range: +4 to +13 dBm
* Operating Temp.: -55 to +100 C
* X-port Input Current: 50 mA
* Total Input Power: 200 mW @ +25 C
* Derate linearly to 50 mW @ 2 mW/ C
