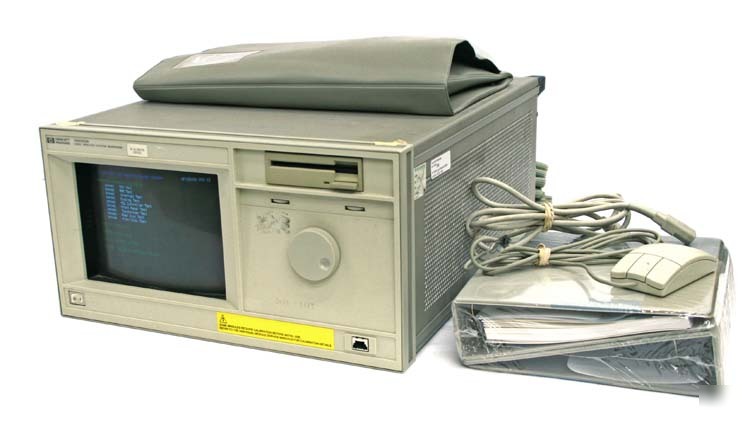

HP16500A logic analysis system w/16515A 16550A 16500
HP16500A Logic Analysis System w/16515A 16550A 16500
Exterior Dimensions (L"*W"*H") : 22*16.5*9
The HP 16500A logic analysis system can be configured for a wide range of measurement tasks, including microprocessor debug, hardware design verification and debug, software performance analysis, characterization, and functional pass/fail testing. The 16500A's five card slots accept six different measurement modules. With this system, you can do the following:
* Make time-correlated measurement between cards using the intermodule bus
* Compare hardware measurement data with design simulation data
* Program the 16500A with easily understood commands through the HP -IB or RS-232C built-in interfaces
* Generate report-quality documentation with pushbutton ease.
HP 16515A 1 Ghz Timing Master Module
HP 16550A 100 Mhz State/500 Mhz Timing Module
HP 16500A Performance Verification (PV) Composite Disk
