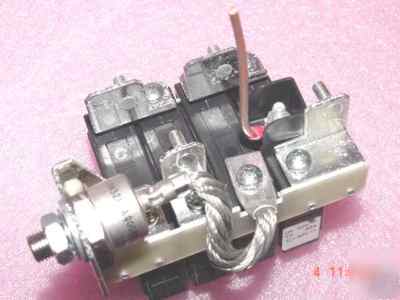

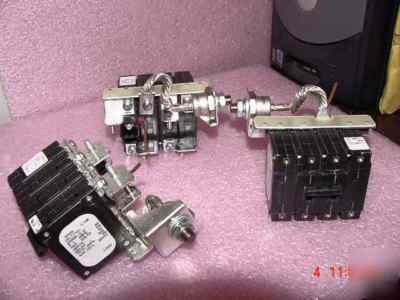

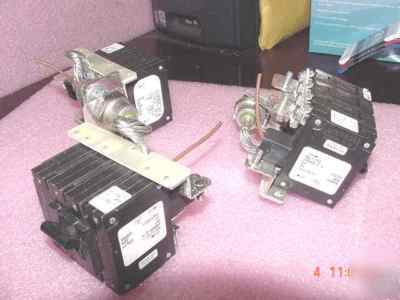

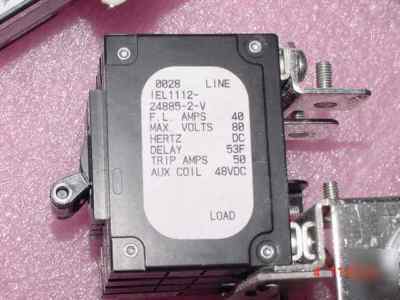

Airpax 40A 65V four pole circuit breakers IEL1112-
Three Pole and Four Pole Protectors
The three pole structure consists of three single pole units
assembled with an internal mechanical interlock which
actuates all units simultaneously. The units are available
with either a single toggle handle or with a handle per
pole. Units with four pole construction operate with a minimum
of two center toggle handles or with a handle per
pole. Please see decision one of the part number decision
tables. Mixing of delays, ratings and configurations is
available in each individual pole. The auxiliary switch is
offered in any series trip pole.
Protector poles are numbered consecutively when viewed
from the terminal side, with the ON position up, starting with
pole #1 on the left side and proceeding to the right.
