> #16-16 barber colman "multicycle" horiz gear hobber

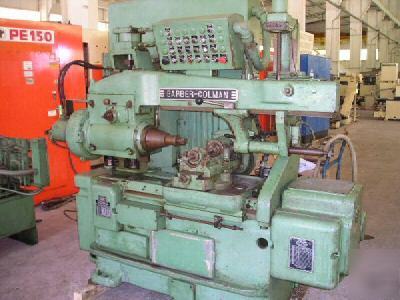

#16-16 barber colman "multicycle" horiz gear hobber
#16-16 BARBER COLMAN "MULTICYCLE" HORIZONTAL
New 1971, Serial No. 4359M Model 16-16 "Multicycle"
One (1) Hob Arbor (.75" Diameter)
Hydraulically Actuated Adjustable Lever-Type
Maximum Rated Diameteral Pitch (Nom)... 6 DP(4.2 module)
Maximum Rated Diameter Of Work......... 16"(406mm)
Maximum Hob Diameter................... 5"(127mm)
Maximum Hob-Slide Travel............... 16"(406mm)
Maximum Work Slide Travel.............. 8"(203.2mm)
Maximum Dist, Work Spindle Centerline To
Hob Spindle Centerline................. 8.75"(222mm)
Minimum Dist, Work Spindle Centerline To
Hob Spindle Centerline................. .75"(19.05mm)
Maximum Dist Work Spindle Face
To Tailstock-Center.................... 44"(1117mm)
Work Spindle Thru-Bore Dia............. 4.13"(105mm)
Feed Ranges............................ .015-.150 IPR
Floor Space Required................... 90"x 82"(2267x2082mm)
Machine Overall Height................. 84"(2134mm)
Machine Net Weight (Approx)............ 7,600 lbs.(3628 kGs)
NOTESL Suitable For The Cutting Of Spur/Helical
Gears, Pinions, Splines, & Other Workpieces Of
Similar Profile Up To 16"(400mm) Pitch Diameter,
