Tektronix WFM601E and 764 digital audio & video monitor

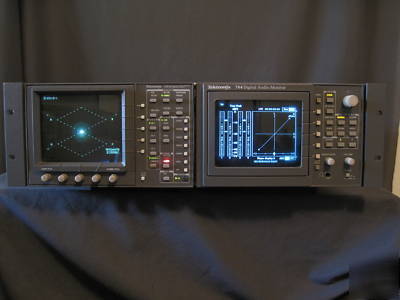

Both are in good physical working condition. Pulled from a working post production environment and are Fitted in a 3U Dual Rackmount case

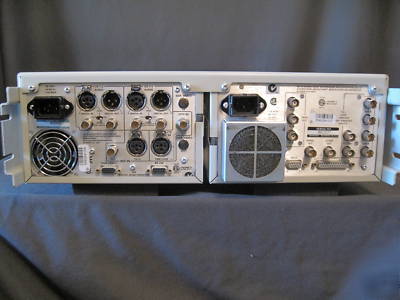

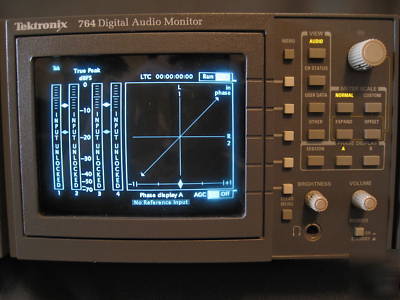

The Tektronix 764 provides technical personnel with a setup and calibration tool and production personnel with an operational monitor capable of conventional and advanced audio assessment tasks.
Easy to read display screens can be viewed from across a room.
An auxiliary VGA output supports larger color display units.

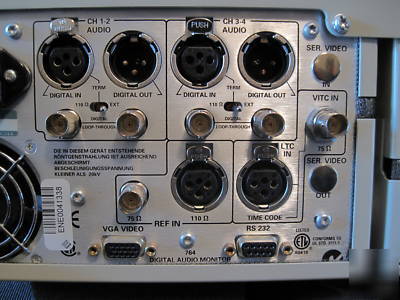

Its two AES/EBU input channels have loop through capability permitting the 764 to be assigned to any signal path.
Operation follows an easy to use, menu driven scheme.
Digital Audio Monitoring in Broadcast and Post Production Facilities
Creative Adjustments in Digital Audio Production
Two Balanced or Unbalanced AES/EBU or SPDIF Loop through Inputs Drive Four Channel Level Meters
Adjustable Clip/Mute Indicators
Unique Sessions Statistics Compilation
Channel Status and User Data Decoding
Supports a Pair of AES Streams Output by Professional DVTRs
Configurable Level Indicators Support a Variety of Technical Preferences
Time Code Stamping of Errors Pinpoints Audio Needing Correction
Simple Viewing of Encoded Channel Status and User Data
System Timing Measurements to Recognized Standard
Monitor Embedded Audio Without and External Demultiplexer
Monitor Sound via Loudspeakers Without External Converters

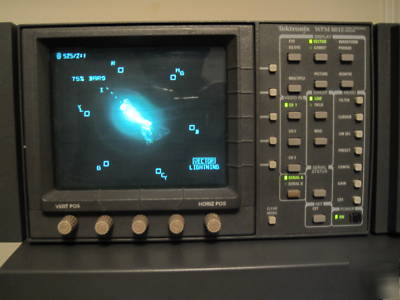

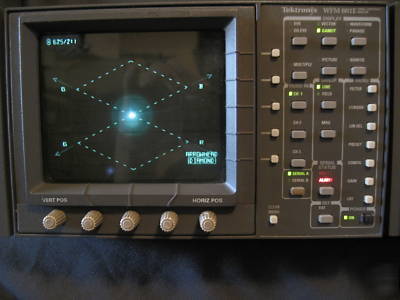

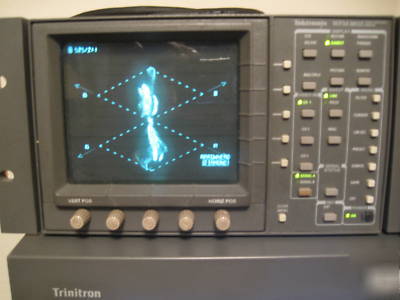

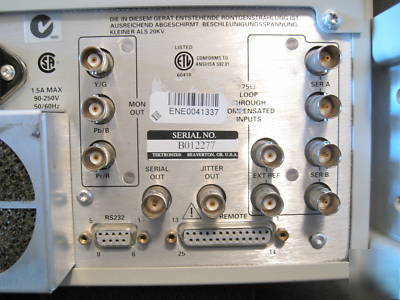

The WFM601E extends the series platform to provide comprehensive evaluation of the digital transport layer. It allows observation of the analog characteristics (eye pattern and signal level) and digital compatibility (format and range checking) of the serial data stream. The WFM601E provides all video features of the WFM601A and adds an analog waveform display of the incoming data signal. The WFM601E s wide bandwidth Eye Pattern display is an amplitude vs. time view of the 270 MB data signal s analog transmission path. It displays peak jitter and amplitude errors and because it is looking at the actual signal path, provides a useful indication of any reflections due to impedance irregularities. The eye pattern is displayed at video sweep rates to provide correlation with the video signal, and a word correlated mode may be selected by more experienced users to observe pattern dependent crosstalk. Digital signal amplitude and jitter is measured in accordance with proposed SMPTE time constant high-pass filtering, assisted by time and voltage cursors.
All Video Features of the WFM601A
Eye Pattern View of the Incoming Data Signal
Eye Pattern Timing Cursors with
Selectable Jitter Display High
Eye Pattern Voltage Cursors to
Indicate Amplitude of the Incoming Data Signal
Cable Length Readout, Calibrated in Meters
Extended Format Checking and Data
