> New vacuum variable capacitor 20-1000 pf/10KV in box

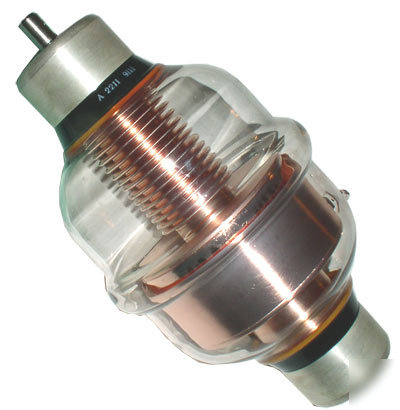

New vacuum variable capacitor 20-1000 pf/10KV in box
New & sealed in the manufacturer packing witch unique number passport,
http://qro-parts.com/images/KP_1-4_1000/518.jpg http://qro-parts.com/images/KP_1-4_1000/519.jpg
http://qro-parts.com/images/KP_1-4_1000/520.jpg http://qro-parts.com/images/KP_1-4_1000/521.jpg
Perfect for tuning of Anode Load in Your Solid Power Amplifier up to 30MHz, also for any Antenna design.
FREQUENCY RANGE: before 30 MHz
CAPACITY: 20-1000 pF +/-5% ( exact capacity is written in individual certificate)
MAX. WORKING Voltage: 15kV at 30MHz
NOMINAL WORKING Voltage: 10kV at 30MHz
Temperature of work *C: -60 +125 (-76 to 257 F !)
Dimensions: 60 x 145 D x 258 H mm (2,36"x 5,7"D x 10,16") w/o shaft.
Tuning shaft: 12,5x20mm (0,5"D x 0,79"), 17 Turns
This sale is for ONE KP1-4 20-1000 pF/10kV vacuum variable capacitor Sealed in the factory box witch the individual factory number passport. Really BRAND NEW !!
Delivery to U.S. is via Texas stock. Will wait delivery from Russia if not in Texas.
