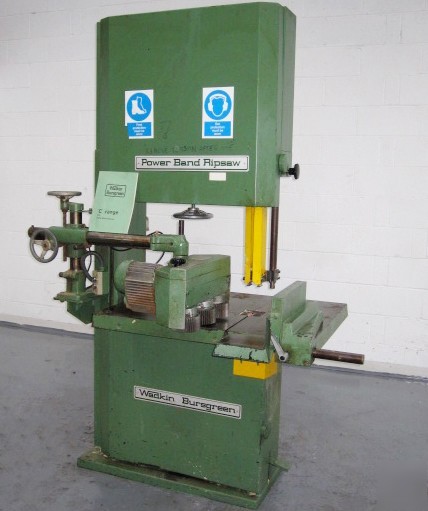

Wadkin pbr 10HP bandsaw - resaw
The Wadkin PBR is the affordable power band resaw with a high specification that meets the needs of a diversity of industries.-Small timber mills - to provides low cost resawing.
Designed for ripping down large boards to various widths.
Feed unit unit with eight feed speeds 2-30m/min
Fitted with tilting table to 35 degrees and fine adjustment by screw and handwheel.
Multi roller adjustable fencebottom saw guide
Top and bottom roller bearing blade guides
foot braketension indicator.Steel feed rollers
Technical Specification:Model PBR
Max. recommended depth of cut 175mm
Blade width 63mmMotor power 10hp
Maximum saw to body 680mmMaximum saw to feed 450mm
Max length sawblade 5080mm (16'8)Min length sawblade 4940mmSpeed of sawblade 1508m/min
Overall dimensions 1400x1050x2300mm"
