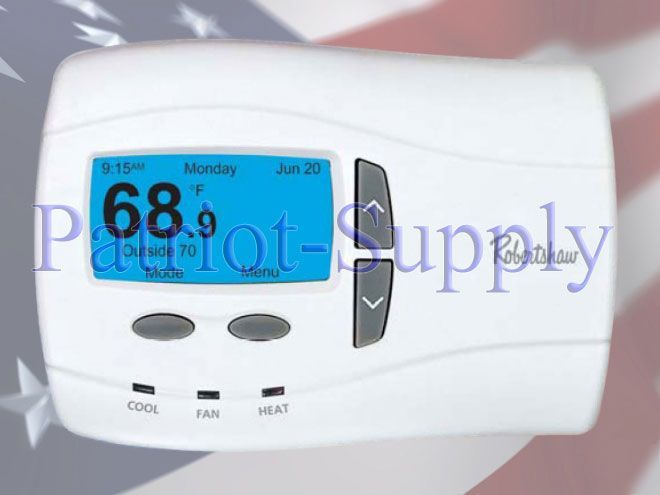

Robertshaw 9701I2 24V digital programmable thermostat
1 Heat / 1 Cool For GAS, OIL, ELECTRIC or HEAT PUMP
Do you want to spend less time installing and setting up thermostats?
1 amp maximum load per terminal (relay outputs)
3 amp total maximum load (all terminals combined)
Temperature control range: 45 - 90 F (7 - 32 C)
Auto Changeover deadband: Selectable 2 to 8 F
Temporary temperature override: 3 hour maximum or next setpoint
Remote sensor capable: 1 indoor and 1 outdoor sensor
System configurations: Single-stage gas, oil or electric
heating/cooling systems and single stage heat pump
Terminations: R, W1, Y1, B, O, G, C, IS, OS
