Parkson model # M1500 plain horizontal mill

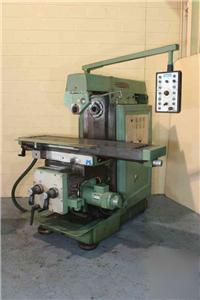

PARKSON MODEL # M1500 PLAIN HORIZONTAL MILL
SERIAL .................................. 9015
MODEL ................................... M1500-U1
YEAR NEW ................................ 1990
AREA OF TABLE ........................... 68-1/4 X 16
SPINDLE SPEEDS .......................... (18) 27 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS .............. 1-3/4 TO 64 IPM
VERTICAL KNEE FEEDS ..................... 1-3/4 TO 64 IPM
LONGITUDINAL TRAVEL ..................... 35-1/2
CROSS TRAVEL ............................ 14
VERTICAL TRAVEL ......................... 17-3/4
TAPER IN SPINDLE ........................ #50NS
RAPID TRAVERSE .......................... 150 IPM
DUAL CONTROLS ........................... YES
OVERARM SUPPORT ......................... YES
SPINDLE MOTOR, HORSEPOWER ............... 15
FEED MOTOR, HORSEPOWER .................. 6
