Insulation resistance meter, megger, 40G ohm------usa
Digital insulation measurement & Digital multimeter

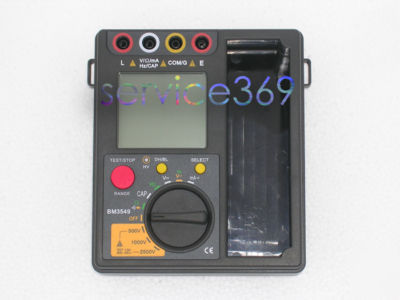

Insulation resistance meter, megger, 40G OHM
Auto power off ( multimeter only )
Function characters Indication
Insulation resistance & measure voltage, two are show together on the LCD display
Insulation resistance: 400k ~40G
Accuracy: 400k~200M : 3%+5digit, 200M~ 4G : 5%+5digit, 4G~ 40G : 10%+5digit
Measurement voltage 500V/ 1000V/ 2500V
Short circuit current : 1.5mA or more
Measurement time : 1/ 2/ 10min
DCV : 400m/ 4/ 40/ 400V 0.5%+5digit, 1000V 0.8%+5digit
ACV : 4/ 40/ 400V 0.8%+5digit , 700V 1%+5digit
DCA : 40 mA/ 400mA 0.8%+5digit
ACA : 40 mA/ 400mA 1%+5digit
RESISTANCE : 400/ 4k/ 40k/ 400k 0.8%+5digit, 4M 1%+3digit, 40M 2%+3digit
CAP 40n/ 400n/ 4u/ 40 uF 3%+5digit
FREQ : 40/ 400/ 4k / 40k/ 400k/ 4MHz 0.5%+3digit
Diode test : max. 1.8 volt
Continuity test : less than 380 OHM, turn on the buzzer

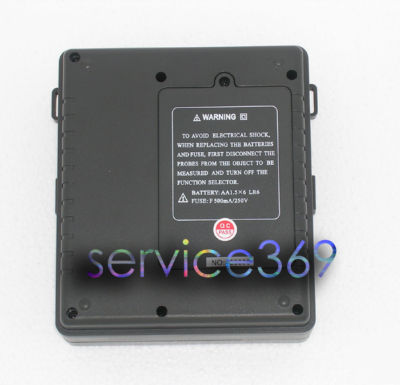

1.5V AA size Battery x 6 ( included )
