BITX VERSION 3 KIT WITH FREQUENCY COUNTER 50MHZ LCD IK3FLL FREQ COUNTER
IK3 FLL LCD Frequency counter with a PIC + VFO PCB FOR FLL
Frequency stability aligned to the reference crystal, with a maximum +/- 15 Hz drift
Digital frequency readout, with programmable IF value and 10 Hz resolution on the LCD
Manual frequency tuning, trough a multi-turn potentiometer
Automatic Lock/Unlock function, unlock status is signalled by a LED diode and entered during
manual tuning or in case of an excessive VFO drift
Programmable lock range. It is the maximum allowed value for a short term (0.2 sec)
frequency shift without exiting the locked status. This improves the capability to suit to various
The overall (long term) drift compensation capability is limited to about 15 KHz (+/- 7.5 KHz),
normally enough to stabilize a well assembled VFO, however I suggest not to exceed a 20/25
MHz limit, although the counter capability may reach 35/40 MHz.

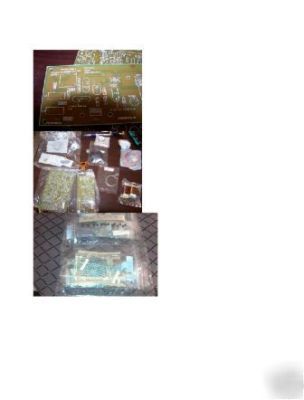

* 1.Complete spare parts for kit, but components only for Freq Counter Part and No parts for VFO.
* 2. PCB for Freq Counter and VFO
The FLL Frequency Counter kit works well with the Bitx version 3 Kit
