Waterproof,plug & receptacle-60 amp,4 wire, to 600 volt
http:// /store/product.php?productid=541&cat=145&page=1

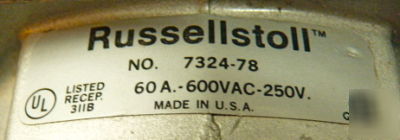

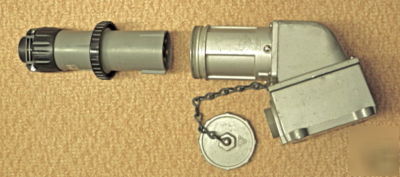

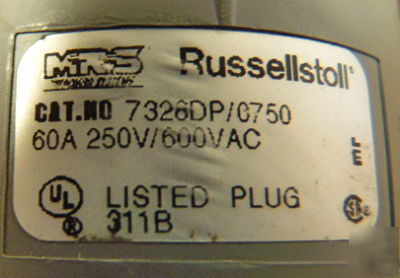

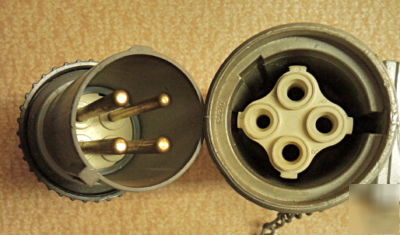

This is an industrial/marine assembly (aluminum,with epoxy powder coat finish),Thomas & betts/ Russellstoll No. 7324-78. Not only is it the female receptacle, but also includes the male cord receptacle (plug) as well. (no. 7326DP/0750) Includes a threaded cap for protection against the elements when not in use.Threaded KO at base is 1,1/2" with a reducing bushing (down to 1").
FEATURES:DATA PROCESSING & COMPUTER CONNECTING (originally)WATERPROOF & RAINTIGHTCAST ALUMINUM - CORROSION RESISTANT.VOLTAGE POLARIZEDSAFETY GROUND MAKES FIRST, BREAKS LASTSELF ALIGNING AND SELF WIPING CONTACTSGASKETED SCREW CAP FOR WATERTIGHT CONNECTIONSSTANDARD ONE 1-1/2" OUTLET (ONE END ONLY) UL LISTEDCSA CERTIFIED
MATERIALS:HOUSING - CAST ALUMINUMCONTACT SLEEVES - SOLID BRASSHARDWARE - STAINLESS STEEL
here is thier complete catalogue - Thomas & betts/Russellstoll on this prodiuct line;
http:// /documents/Russellstoll.pdf
